Manufacturer
Hymmen
Press, Laminating, Coating & Digital Printing Lines
Need Hymmen parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteWe are the North American partner for Hymmen and stock the wear items and spares that keep a laminating, coating or pressing line running. Founded in 1892 and headquartered in Bielefeld, Germany, Hymmen builds continuous and cycle-based surface-finishing technology, the machines behind much of the world's laminate flooring, furniture, and decorative panels.
Hymmen's core lines are continuous double-belt presses, multi-daylight (short-cycle) presses, laminating lines, and liquid coating lines using roller and casting coating with UV curing. On the digital side, Hymmen's JUPITER digital printing lines and its award-winning Digital Lacquer Embossing (DLE/DLEplus) process create embossed-in-register textures (synchronized decor and structure; the DLE process won an Interzum Award in 2019) for flooring, furniture, laminates, and facades.
We source across the line, from steel press belts and belt seals, heating and cooling platens and insulating plates, coating and laminating rolls and roll seals, print heads and printing cylinders, drive motors, bearings, and hydraulic components. If it wears in a Hymmen press, coater or printer, we can quote it.
Send us the part number, the machine model, or a nameplate photo and we respond within one business day, with U.S.-based sourcing and a single point of contact who manages import and delivery, so in-stock spares ship fast while made-to-order parts carry a factory lead time we manage and communicate.
Need Hymmen parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteHymmen Product Lines

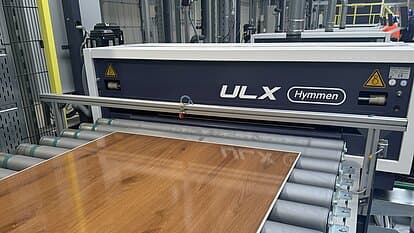

Coating Lines
Hymmen Coating Lines—quotes and sourcing from Protech International.
Details & quote

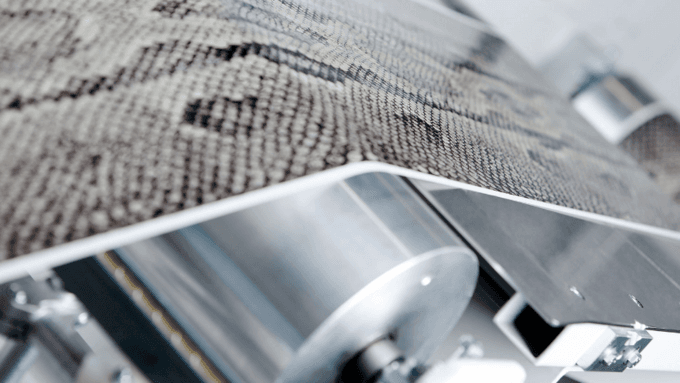

Cylinder Printing
Hymmen Cylinder Printing—quotes and sourcing from Protech International.
Details & quote

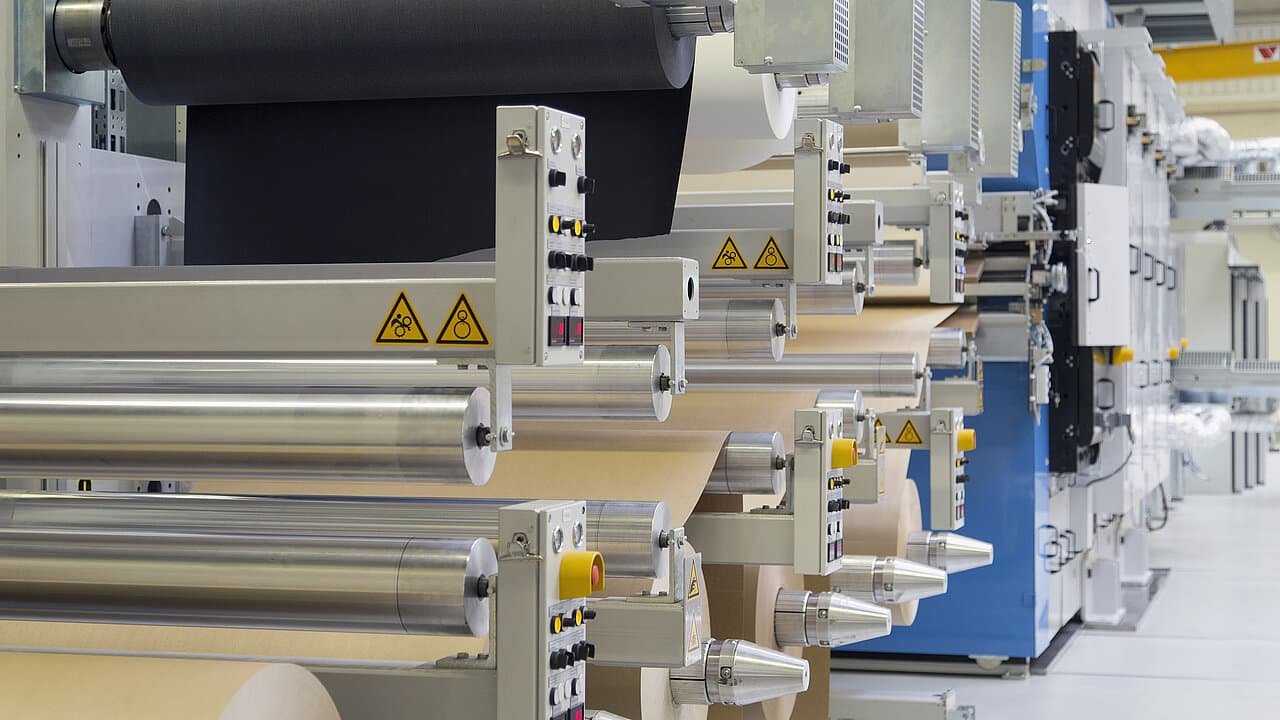

Drives & Motors
Hymmen Drives & Motors—quotes and sourcing from Protech International.
Details & quote

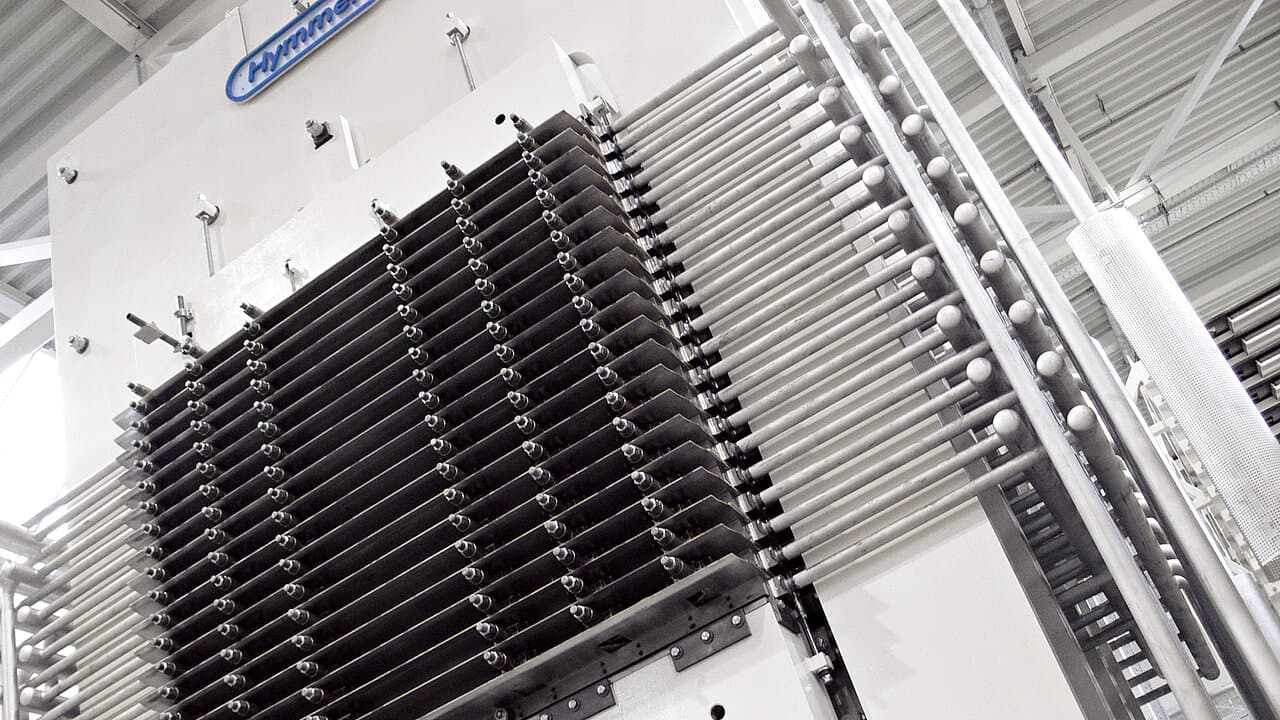

Heating & Cooling Plates
Hymmen Heating & Cooling Plates—quotes and sourcing from Protech International.
Details & quote

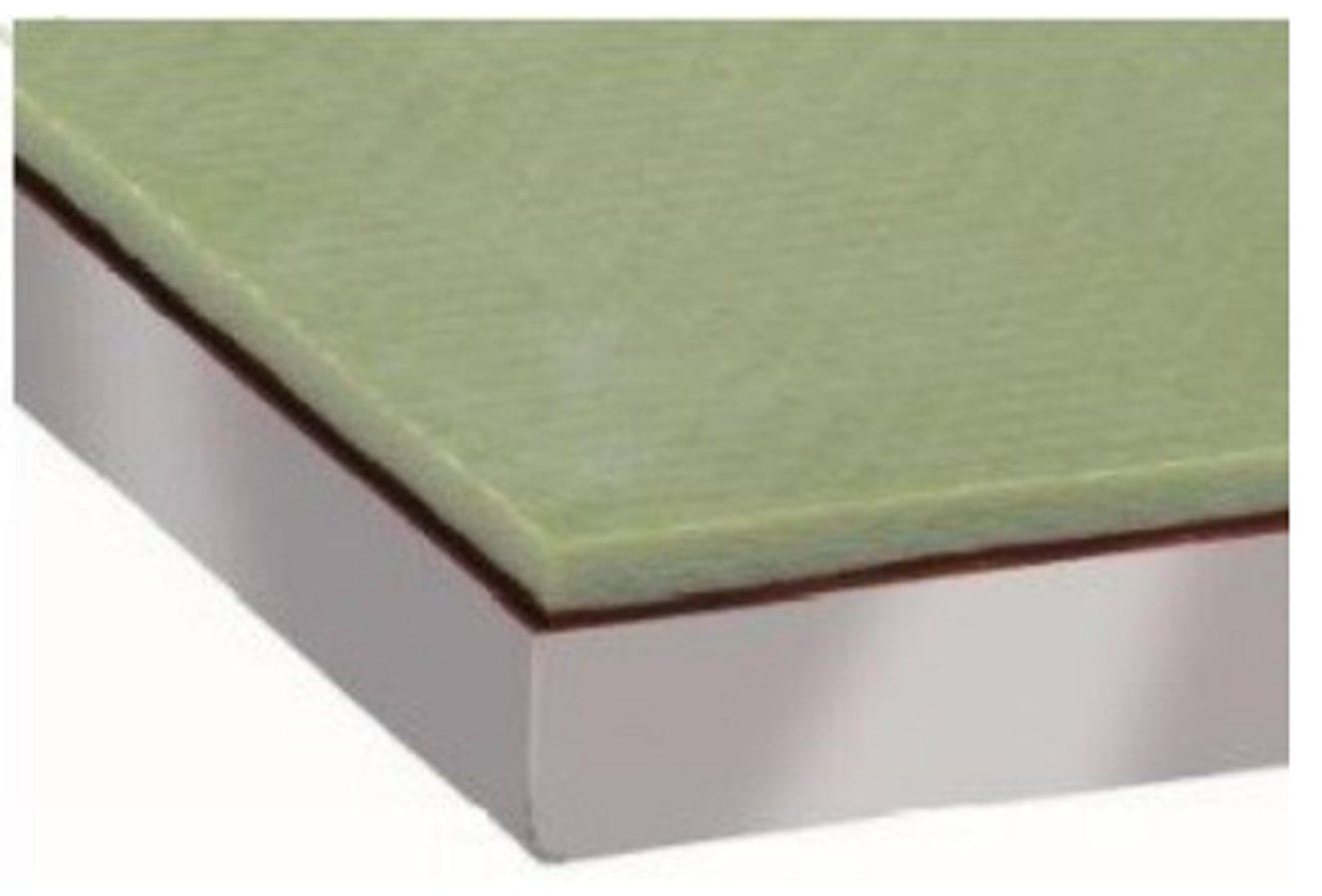

Insulating Plates
Hymmen Insulating Plates—quotes and sourcing from Protech International.
Details & quote

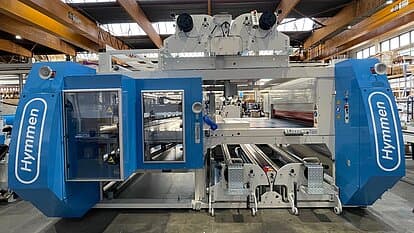

Laminating Lines
Hymmen Laminating Lines—quotes and sourcing from Protech International.
Details & quote
Press Lines
Hymmen Press Lines—quotes and sourcing from Protech International. Available in 3 configurations.
Details & quote

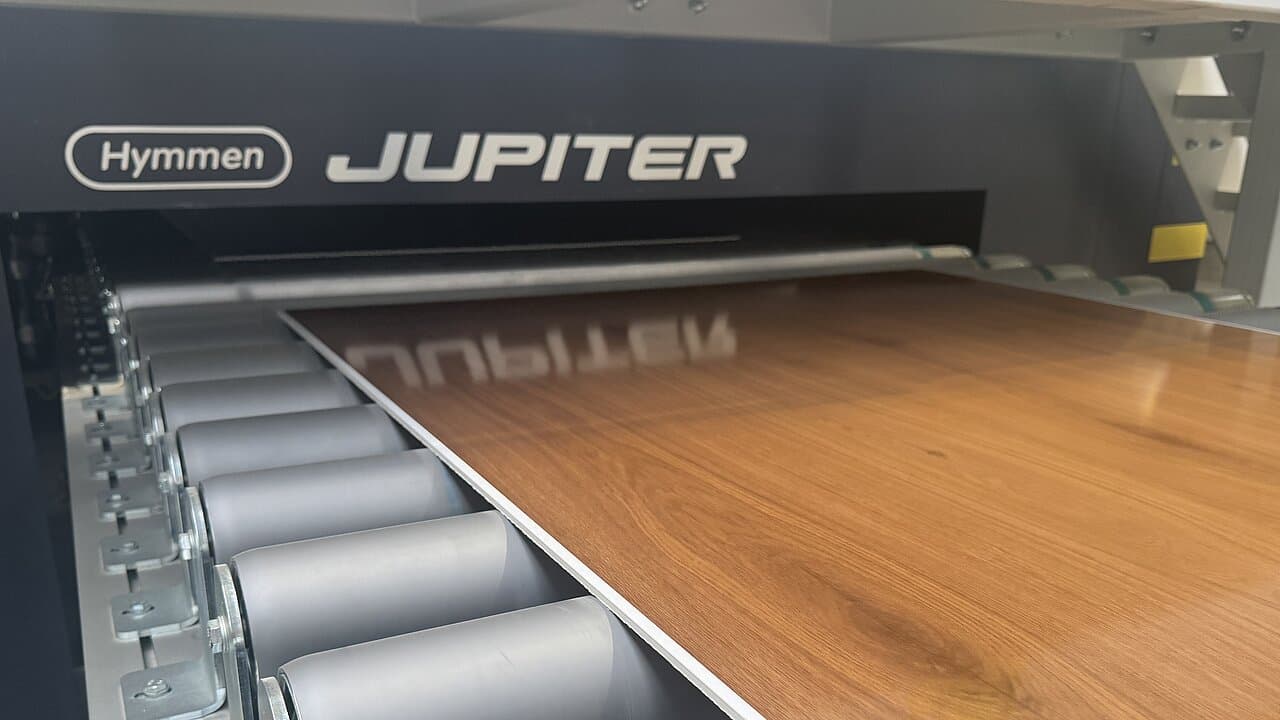

Printing Heads
Hymmen Printing Heads—quotes and sourcing from Protech International.
Details & quote

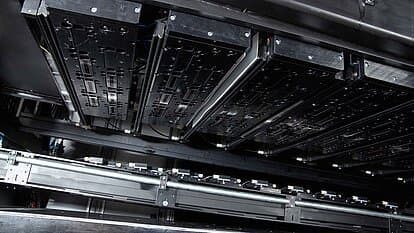

Printing Lines
Hymmen Printing Lines—quotes and sourcing from Protech International. Available in 1 configurations.
Details & quote

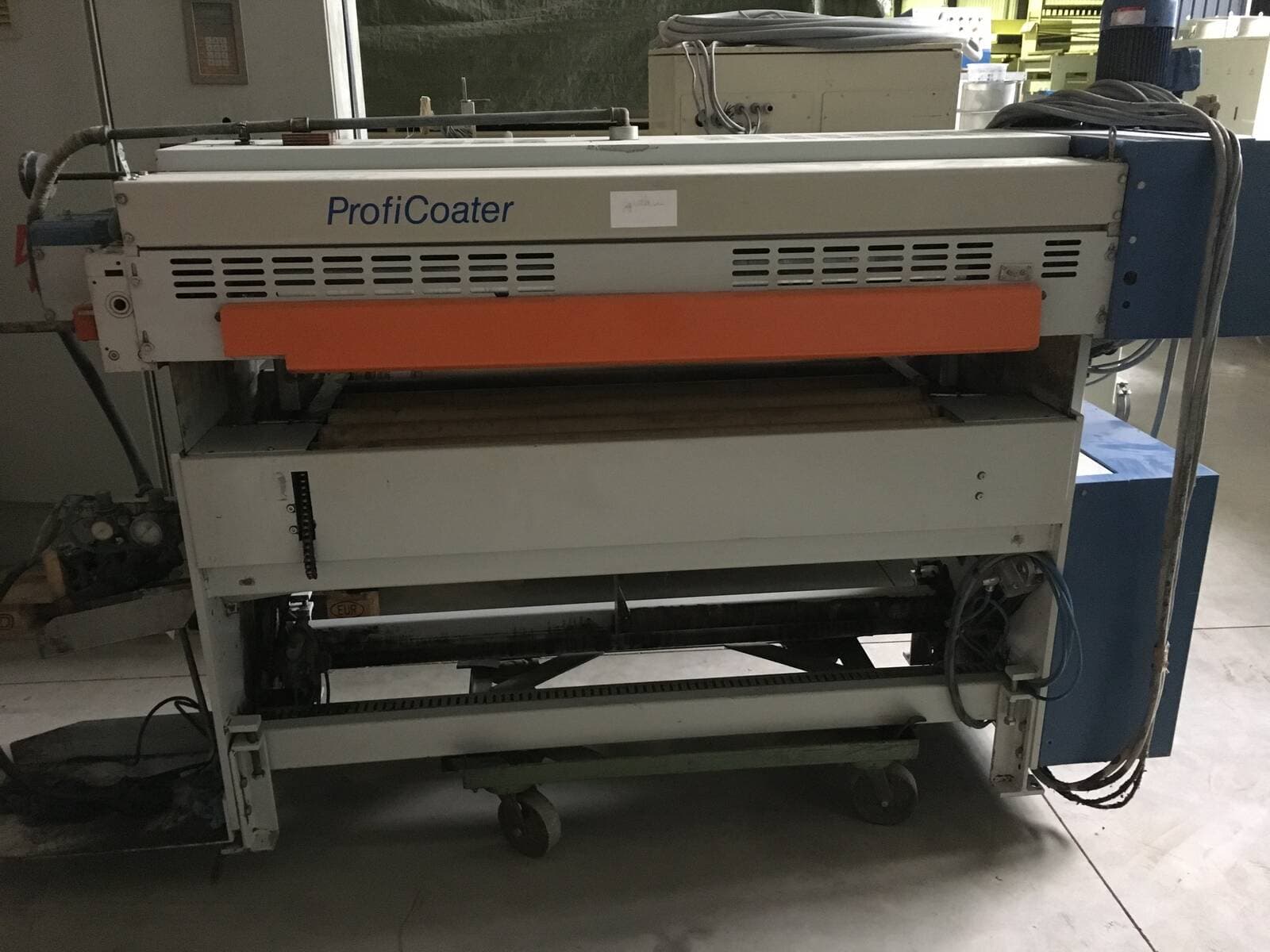

Rolls
Hymmen Rolls—quotes and sourcing from Protech International.
Details & quote

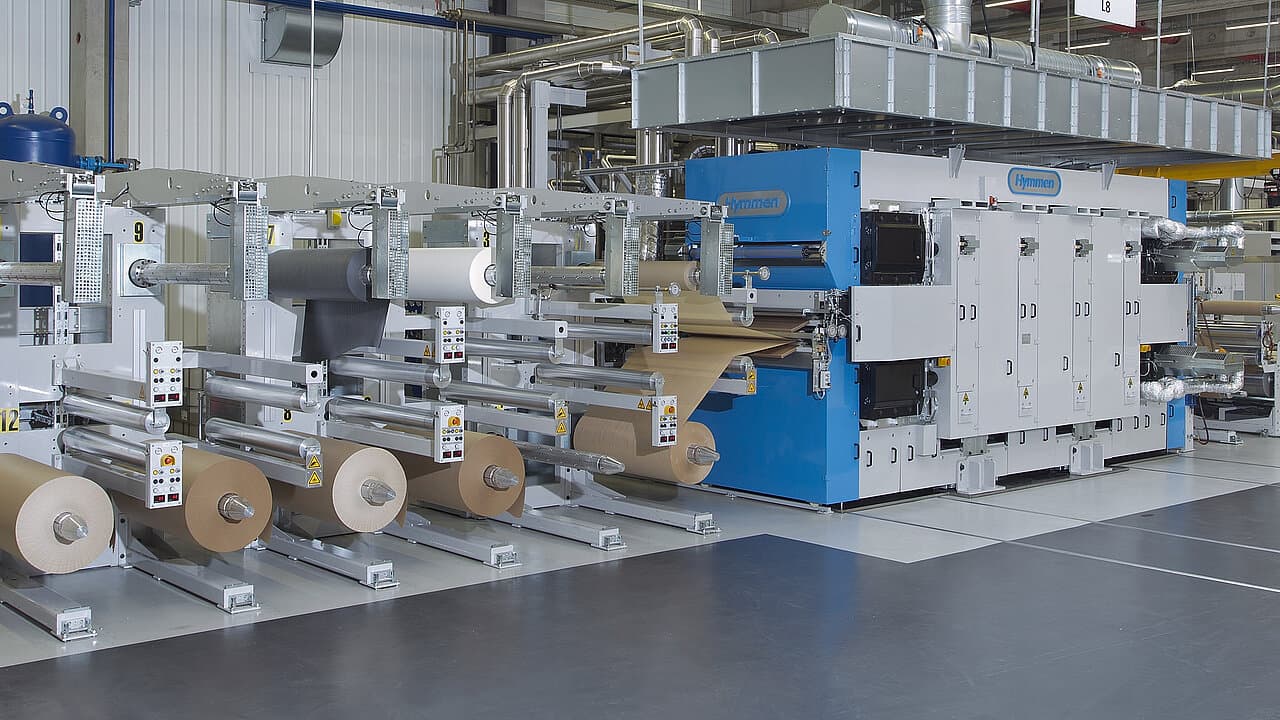

Seals
Hymmen Seals—quotes and sourcing from Protech International.
Details & quoteTypical Applications
- Continuous double-belt press lines for flooring and panels (SPC/rigid and laminate)
- Short-cycle / multi-daylight press lines for furniture and panel lamination
- Liquid coating and lamination lines (roller and casting coating, UV curing)
- Digital printing and Digital Lacquer Embossing (JUPITER / DLE) surface decor
- Decorative laminate, decor-paper, and facade-panel production
- Line automation: feeding, stacking and robotic handling
Example Hymmen Part Numbers We Source
A representative, non-comprehensive sample of Hymmen part numbers and type codes we source. Don't see yours? Send it over. We source the full catalog.
| Part Number | Description |
|---|---|
| 1037-0184-01 | Conveyor support, left side, fixed |
| 1037-0185-01 | Conveyor support, right side, adjustable |
| 1037-0185-02 | Conveyor support, left side, adjustable |
| 1216-0240-08 | Blade |
| 1602-0211-03 | Control panel KKL 40345 |
| 1910-0002-01 | PC upgrade |
| 1910-0012-01 | UV module, complete, 0202-70356-1 |
| 2031-0412-17 | Transport bar |
| 2045-0098-71 | Raising column |
| 2045-0164-71 | Raising column TLA 70 x 610, hub 120 |
| 2072-0015-01 | Square cut bearing with brake assembly |
| 2075-0064-01 | Bearing block |
| 2076-0001-01 | Bearing block |
| 2077-0029-01 | Rail bearing |
| 2082-0051-80 | Threaded bolts 6,0/M x 170,0 |
| 2086-0028-71 | Screw shaft, dia 38/G3/4 x 115, no bore |
| 2091-0043-01 | Shaft, D=25.0 x 95 TRK |
| 2092-0064-16 | Tensioning shaft HD75-76x300-1650 L=2092 |
| 2095-0256-01 | Shaft |
| 2110-0014-01 | Threaded spindle TR30 x 6 x 310 |
| 2110-0031-71 | Threaded spindle TR 30 x 6 x 665.0 |
| 2110-0133-70 | Threaded spindle TR20 x 4 x 155 |
| 2110-0135-01 | Threaded spindle |
| 2110-0201-71 | Spindle |
| 2116-0090-16 | Axle 25/30/25 x 1890mm |
| 2116-2011-16 | Axis 16,0/25,0/8,0 x 1807,0 |
| 2131-0111-01 | Collar bush ø 40.0/60.0/70.0 x 44.0 |
| 2152-0002-01 | Worm wheel |
| 2152-0006-01 | Gear M2, Z36 50x3 |
| 2153-0031-01 | Worm shaft, 12" length |
| 2155-0069-01 | Spur wheel m3.0 Z18 ø22N B24 N45x32, right |
| 2161-0090-01 | Chain wheel |
| 2161-0470-01 | Sprocket Z30 5/8x3/8 |
| 2161-0713-01 | Sprocket 5/8 x 3/8 Z45 D=100 N130x52 |
| 2161-1207-01 | Sprocket |
| 2161-1426-01 | Chainwheel 3/4 x 7/16 Z14 40mm |
| 2161-1455-01 | Sprocket 1/2 x 5/16 Z=21 |
| 2161-1488-70 | Sprocket 1/2 x 5/16 Z=19 |
| 2161-1613-72 | Chain wheel |
| 2161-1613-73 | Sprocket 1/2 x 5/16 Z18 ø 25N N56x28 |
| 2161-1648-70 | Sprocket 5/8 x 3/8 Z18 D=25N N70x30 |
| 2161-1648-71 | Chain wheel |
| 2162-0070-01 | Double sprocket 5/8 x 3/8 Z18 D=55, 74 x 40 |
| 2162-0555-01 | Chain wheel |
| 2162-1067-01 | Chain wheel |
| 2162-1083-70 | Sprocket 5/8 x 3/8 Z23 D=40N N90x45 |
| 2162-1103-70 | Double sprocket 5/8 x 3/8 A57 D=55n-16P9 N10 |
| 2163-0798-01 | Chain wheel 5/8 x 3/8 Z43 D=72.1 |
| 2163-0799-01 | Chain wheel 5/8 x 3/8 Z43 D=70 LK 120/9 |
| 2163-1045-01 | Chain wheel 1/2x5/16x41 D=72 |
| 2163-1107-01 | Chain disk |
| 2163-1182-01 | Chain disk 1/2 x 5/16 Z18 |
| 2163-1195-01 | Sprocket for table conveyor 1/2 x 5/16 Z21 ø54 LKø63 |
| 2165-1001-01 | Sprocket 1/2 x 5/16 Z16 D=25 |
| 2166-0247-01 | Sprocket |
| 2169-0116-01 | Chain wheel, special |
| 2191-0262-19 | Trough 155/70x2074x141/82 MTC |
| 2192-0092-14 | Drip pan |
| 2199-0203-19 | Distribution channel, adjustable |
| 2214-0004-01 | Flange 238/130x30 |
| 2218-1105-01 | Cam plate 14x32 ULX-S |
| 2221-0167-70 | Ring |
| 2222-0006-01 | Form ring |
| 2222-0098-01 | Form ring 84/80 x 13.5, bore 70/75 |
| 2222-0235-01 | Forming 30/60x51 |
| 2223-0103-74 | Distance sleeve 40/50 x 59mm |
| 2223-0159-74 | Distance sleeve 25,1/35,0 x 12,5 |
| 2224-0016-02 | Coupling 50/25x65LB |
| 2229-0009-01 | Sleeve 35/40x86mm |
| 2235-0745-01 | Housing for spur gear, MTC 1700 |
| 2237-0135-16 | Safeguard |
| 2237-0145-16 | Safeguard |
| 2242-0124-08 | Door, without mounting parts or glass |
| 2289-0898-01 | Steel sheet 2.0 x 64.0 x 128.5, right hand |
| 2289-0898-02 | Steel sheet 2.0 x 64.0 x 128.5, left hand |
| 2366-0160-01 | Bearing housing 115 x 72 x 140, bore 90K6 |
| 2366-0171-01 | Bearing housing |
| 2366-0264-01 | Bearing housing |
| 2418-0139-01 | Block 40 x 28.5 x 100 M12 |
| 2420-0073-01 | Bearing block |
| 2420-0073-02 | Bearing block |
| 2420-0145-01 | Bearing block |
| 2420-0145-02 | Bearing block |
| 2470-0013-01 | Bracket, belt tensioner M82 |
| 2471-0142-01 | Coupling 60 x 15 x 200 L14 SH 106 Bolzen |
| 2492-0080-02 | Side plate |
| 2495-0007-18 | Doctor blade .3x30x1840mm, steel |
| 2495-0027-14 | Doctor blade, pure blue rubber, 5 x 40 x 1440 mm |
| 2495-0027-16 | Doctor blade, synthetic PUR blue, 5 x 40 x 1640 mm |
| 2495-0027-18 | Doctor blade 5x40x1840mm, blue rubber |
| 2498-0001-01 | Side plate 238/174 G1 |
| 2498-0001-02 | Side plate 238/174 G1 |
| 2498-0008-01 | Side plate TLA, top left |
| 2498-0008-02 | Side plate TLA, top right |
| 2498-0017-01 | Side plate for glue spreader |
| 2498-0017-02 | Side plate for glue spreader |
| 2498-0018-01 | Side plate for glue spreader |
| 2498-0018-02 | Side plate for glue spreader |
| 2498-0039-01 | Side plate, right |
| 2498-0039-02 | Side plate, left |
| 2498-0072-01 | Side plate 5 x 125 x 141, left side |
| 2498-0072-02 | Side plate 5 x 125 x 141, right side |
| 2498-0081-01 | Teflon side plate with 1" hole, right side, bottom, UMA, 12.5x142.5x270.0, G1" |
| 2498-0081-02 | Teflon side plate with 1" hole, left side, bottom, UMA, 12.5x142.5x270.0, G1" |
| 2498-0082-01 | Side plate MTC 4.3 x 82 x 95 |
| 2498-0092-01 | Teflon side plate |
| 2498-0092-02 | Teflon side plate |
| 2498-0149-01 | Teflon side plate 5.0 x 99.5 x 105.0 |
| 2498-0149-02 | Teflon side plate 5.0 x 99.5 x 105.0 |
| 2498-0167-01 | Side plate, scraper plate top |
| 2498-0167-02 | Side scraper plate, top |
| 2498-0183-01 | Side plate 5.0 x 103.5 x 105.0 ULX-S |
| 2498-0183-02 | Side plate 5.0 x 103.5 x 105.0 ULX-S |
| 2506-1058-14 | Counter pressure roller 190/30x1300/1475 |
| 2506-1067-23 | Counter pressure roller, chrome, 285/40 x 2300/2895 SZVA |
| 2506-1089-16 | Counter pressure roller |
| 2507-1003-16 | Pressure roller NR60 ø78/47 x 1660 |
| 2507-1036-08 | Pressure roller |
| 2512-0066-28 | Shaft, left, 35/25x1670 |
| 2512-0067-28 | Shaft, right, 35/25x1415 |
| 2516-1078-14 | Doctor roller 74/40 x 1400/2020 SZVA, without cooling |
| 2523-1031-16 | Laminating roller Cr DS+S ø495/80/55x1660/2386 16P9 |
| 2544-0016-71 | Supply pipe 14x1.5x468 |
| 2577-0065-01 | Sliding strip 3.04 x 10.5 x 149.0 |
| 2577-0072-01 | Sliding strip 3.04 x 10.5 x 170.0 |
| 2577-0103-01 | Sliding strip 3.04 x 10.5 x 170.0 |
| 2588-0426-14 | Bar for drip pan |
| 2588-0896-01 | Sliding strip 4.1 x 7.4 x 128.0 |
| 2632-0149-70 | Rail guide 8 x 6 x 215 TRC |
| 2632-0149-73 | Sliding rail 8x6x235 |
| 2632-0202-74 | Sharp-edged rail for guidance carriage |
| 2640-0074-72 | Linear axis AXC60-ZFL 14-S15-2750-3030 |
| 2671-0162-01 | Stainless steel plate, drive side, 180.0 x 19.5 x 210.0 mm |
| 2671-0162-02 | Stainless steel plate, non-drive side, 180.0 x 19.5 x 210.0 mm |
| 2720-0123-17 | Blade holder |
| 2731-1043-01 | Holding bracket 4x66x70x136x40 |
| 2772-0009-19 | Drain lip curtain |
| 2795-0003-70 | Spindle nut |
| 2795-0003-71 | Spindle nut |
| 2795-0008-01 | Spindle nut TR30x6x40 |
| 2795-0126-01 | Spindle nut |
| 2795-0139-71 | Spindle with spindle nut TR40x7x320 |
| 2795-0140-01 | Brass spindle nut |
| 3040-0040-01 | Adjustment gear unit GB 1370-C i=8 TR20X4-RH 86x90 |
| 3040-0053-01 | Adjustment gear |
| 3138-0156-01 | Toothed belt pulley |
| 3138-0291-70 | Toothed belt pulley P48-8M-30 6F ø40.0N N75.0x48 |
| 3161-0002-01 | Brake pad 39 x 45 x 63.5 |
| 3220-0003-01 | Coupling |
| 3224-0003-01 | Coupling Bowex |
| 3224-0004-01 | Coupling Bowex |
| 3340-0070-70 | Single point lubricant |
| 3522-0034-01 | Lubricated tube D=4 x 38 x 49 |
| 3522-0034-02 | Lubricated tube D=4 x 38 x 49 |
| 3522-0036-01 | Lubricated tube D=4 x 38 x 69 |
| 3522-0036-02 | Lubricated tube D=4 x 38 x 69 |
| 3545-0029-01 | Rotary union (coupling) G 1/2", DN 12, max. 6 bar, 60°C, 50 U/min |
| 3551-0224-72 | Steel braided hose DN 50/80 PN 64 L 500/1050 |
| 3595-0021-70 | Strainer 75x180x100 Mw 0.8x0.45 UMC |
| 3900-1247 | Temperature limiter STB-R 230 HTT WTE 08-5-48-1 |
| 4141-0001-01 | Trapezoidal threaded nut 30 x 6 x 50 |
| 4201-0002 | Retaining ring 80x2.5 |
| 4209-0007 | Retaining ring 25,0x40,0x16,0, 1xM8 |
| 4222-0035-01 | Pin D=11.9 x 11.5 |
| 4231-0013-16 | Feather key 8x7x1670, Form D |
| 4231-0097-16 | Feather key 8x7x835 |
| 4231-0098-16 | Feather key 8x7x735 |
| 4709-0103-01 | Nilos ring 6005 ZAV 43.7x34x25x0.3x2.5 |
| 4800-0052-01 | Cylinder pressure spring 7320 20 81 00 |
| 5163-0150 | Fuse 27x60 |
| 5484-0001 | IR module IMR 020/6 |
| 5564-0008 | UV lamp 100W, L=1780mm |
| 5564-0054 | UV lamp 120W/cm, L=1880, UVH17522-0 |
| 5605-0097 | Switch EX LI-tast/0/RE-8003/131-726-3-tt li-S re-S |
| 5623-0040 | Limit switch with cable |
| 5811-0034 | Valve HE-3-QS-6 P-3/2 |
| 9034-0028-14 | Special shipping crate 2050x330x330 |
| 9034-0028-16 | Wooden packing case |
| 7730013200 | Solenoid valve G 21-3 G24 |
| ELBE0600003 | Hohner encoder HW180S-1161-R129-100 |
| ELBE1950001 | EMC encoder AWI58S-106R 129-1024, with plug |
Hymmen: Common Questions
The full wear and spares range covers steel press belts and seals, heating/cooling platens and insulating plates, coating/laminating rolls, print heads and cylinders, drive motors, bearings, and hydraulics. Send a part number, machine model, or nameplate photo.
Yes. We source consumables and spares for JUPITER digital printing lines and Digital Lacquer Embossing (DLE/DLEplus) systems, in addition to conventional press, laminating and coating lines.
You order from us, not overseas. As Hymmen's North American partner we manage the entire supply chain and quote within one business day, so in-stock spares ship fast while any made-to-order parts carry a factory lead time we manage and communicate.
