Manufacturer
END-Armaturen
German Industrial Valves, Flanges & Fittings
We are a U.S. source for the full END-Armaturen line, a broad industrial manufacturer of valves, actuators, and fittings whose range also includes brewing and beverage fittings. Founded in 1980 in Bad Oeynhausen, Germany, and completed by the addition of END-Automation in 1992, END-Armaturen carries an unusually deep catalog of more than 720,000 products in stock, including 320,000-plus ball valves and over 10,000 butterfly valves, backed by a delivery-performance record around 93%.
Our customers pull the whole range from us, covering butterfly, ball, knife-gate, gate, solenoid, control, non-return/check, relief/safety, and spill valves; pneumatic- and electric-actuated ball valves and stand-alone actuators; plus strainers, pressure reducers, flanges, fittings, and matching sealing/repair kits. Bodies are available in ductile iron, stainless steel, aluminum and plastics at PN 10 and PN 16, with DVGW, ATEX, CE, and ISO 9001 certifications where the application demands them.
These valves run in process and fluid-control systems, woodworking and laminating lines, pneumatic automation, and beverage/brewery processing, with brewing and beverage service among the many applications the line serves. Distributors and end users searching for END-Armaturen in the U.S. have long struggled to find a reliable stateside source; that gap is exactly what we fill, with fast quotes and no minimum-order friction.
Send us the END-Armaturen part number, a nameplate photo, or the valve you're replacing and we'll match the type, size, actuation, and material and quote within one business day.
END-Armaturen Product Lines

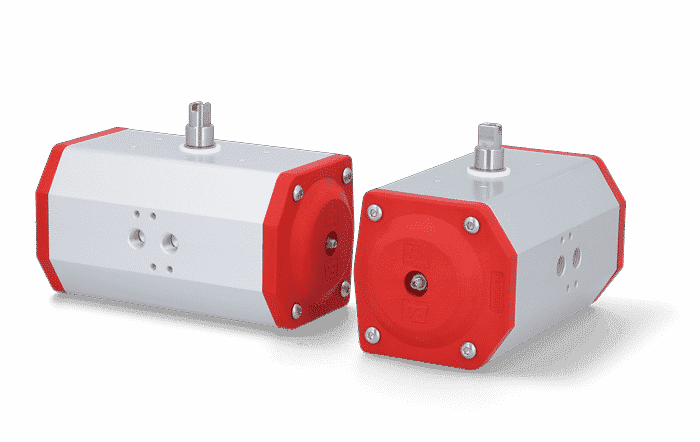

Actuators
END-Armaturen Actuators—quotes and sourcing from Protech International. Available in 2 configurations.
Details & quote

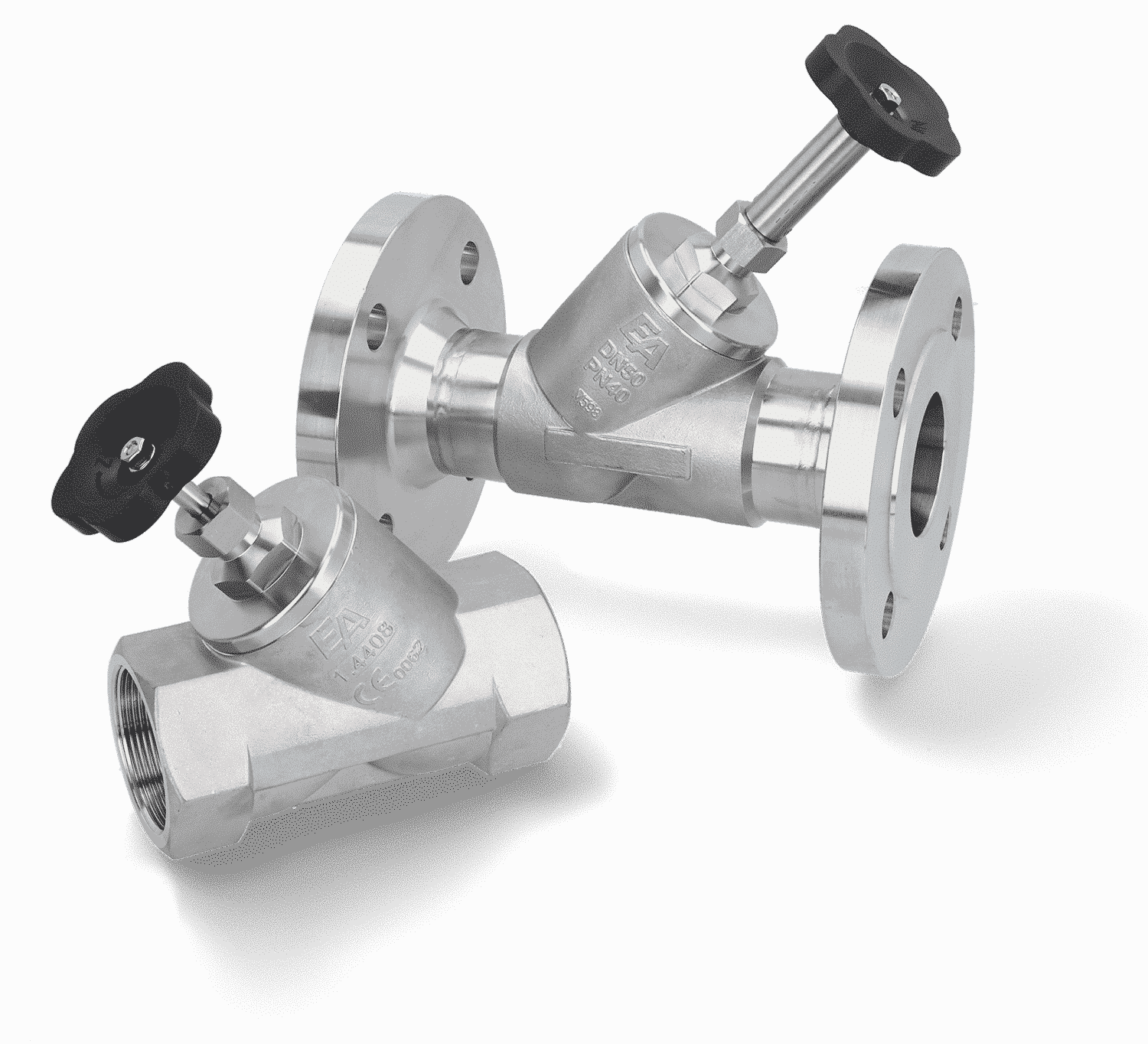

Brewing Equipment
END-Armaturen Brewing Equipment—quotes and sourcing from Protech International.
Details & quote

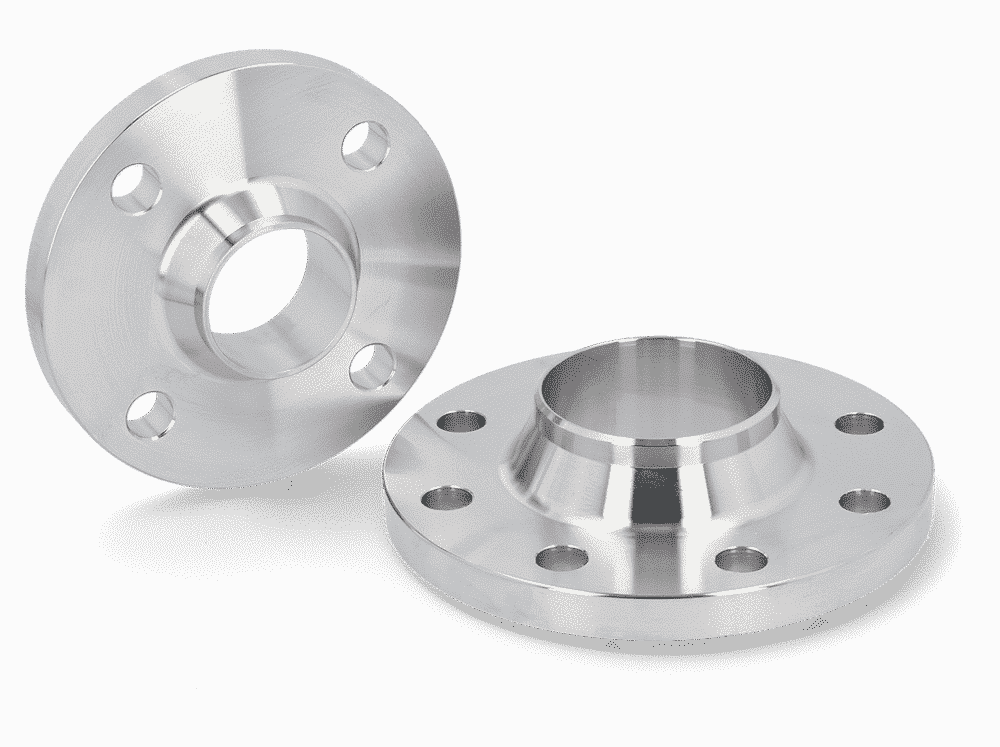

Flanges
END-Armaturen Flanges—quotes and sourcing from Protech International.
Details & quote

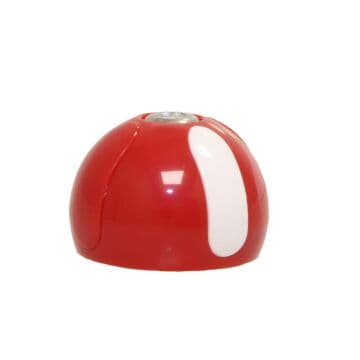

Position Indicators
END-Armaturen Position Indicators—quotes and sourcing from Protech International. Available in 2 configurations.
Details & quote

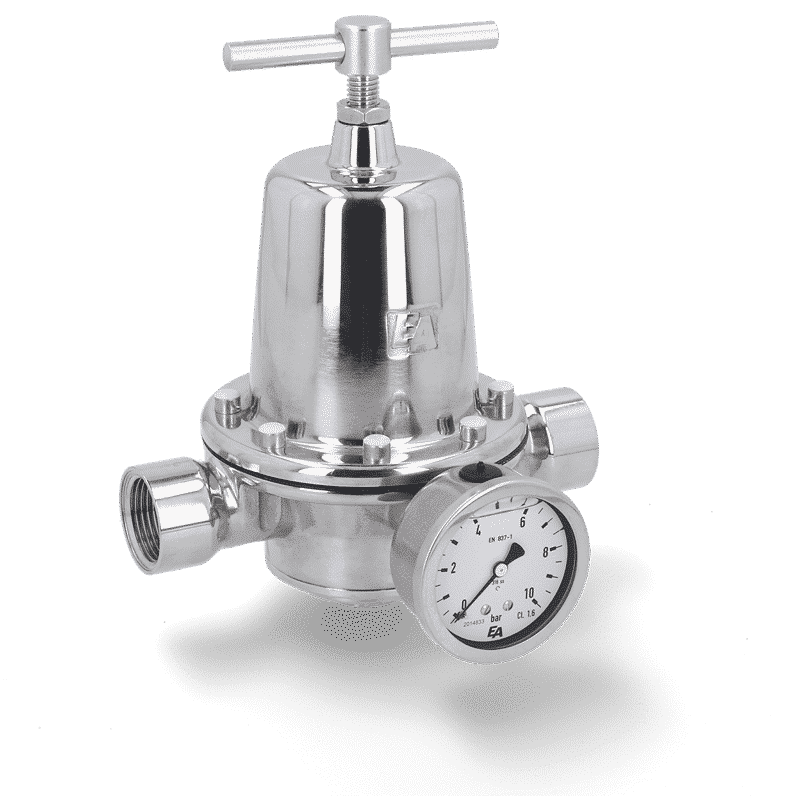

Pressure Reducers
END-Armaturen Pressure Reducers—quotes and sourcing from Protech International.
Details & quote

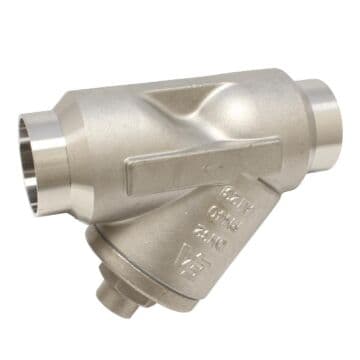

Strainers
END-Armaturen Strainers—quotes and sourcing from Protech International.
Details & quote
Valves
END-Armaturen butterfly, knife-gate, solenoid, check, safety, and motor-driven valves for process and beverage duty.
Details & quoteTypical Applications
- Process and fluid control (shut-off, throttling, backflow prevention)
- Pneumatic automation and actuated valve assemblies
- Woodworking, laminating and panel-processing lines
- Breweries and beverage/food processing
- Water, wastewater and general industrial piping (knife-gate, butterfly)
- Safety and pressure management (relief/safety valves, pressure reducers, strainers)
Example END-Armaturen Part Numbers We Source
A representative, non-comprehensive sample of END-Armaturen part numbers and type codes we source. Don't see yours? Send it over. We source the full catalog.
| Part Number | Description |
|---|---|
| 3020.1305B | Plug 130/5 with 5m connection cable |
| 3031.1306B | Connector plug with resistor |
| 3050.1303B | End cap 130/3 |
| 3100.0310I | Contact duo profile |
| AM621507 | 5/2-way solenoid valve, Namur DN6, 110V 50-60Hz, 3-10 bar, with manual override, aluminum |
| AM622207 | 5/2-way solenoid valve with cables, Namur DN6, 24VDC-Ex, impulse version EExmIICT5, 3-10 bar, manual override, aluminum/NBR, 5m cable |
| AN621507 | 3/2-way solenoid valve, Namur DN6, 110V 50-60Hz, 3-10 bar, with manual override, aluminum/NBR |
| APZ22 | Test report per DIN EN 10204-2.2 |
| APZ31 | Inspection certificate per DIN EN 10204-3.1 |
| AS080303 | Limit switch, electrical/mechanical, 24-250V, IP67, 2-piece housing |
| AS080303/R | Limit switch, electrical/mechanical, 24V-250V, IP67, 2 pcs. mounted in housing, M16 |
| AS300106 | Strainer, DN40, flanged, PN16, stainless steel, 0.25mm mesh |
| AW100021 | Silencer 1/4", brass/sintered bronze |
| AW700021 | Silencer 1/4", Plastic |
| BGS00122 | Sieve, 3/8"+1/2", 0.5mm, stainless steel, 15 x 40mm |
| BGS00125 | Screen, G1", 0.5mm, stainless steel, 25 x 60mm |
| DG2D1123065/OS | Pressure actuated valve, G2 1/2", SK125 brass, OS, brass/PTFE-PTFE, normally closed against flow |
| DIN0933-M10-090/A2 | Hex bolt, M10 x 90, V2A |
| DIN7991-M06-025/A4 | Hexagon socket head bolt, cylindrical, M6 x 25, V2A |
| DIS0295.06.0024/4571 | Distance ring for overflow valve G1, stainless steel |
| DK330308006 | Piston pressure reducer DN40, stainless steel/FKM, flanged, max. temp. 180°C, inlet max. 25 bar, outlet 1-3.5 bar |
| DK330408027 | Piston pressure reducer G1 1/2", stainless steel/FKM, max. temp. 180°C, inlet max. 25 bar, outlet 3-7.5 bar |
| DK340308008 | Ball valve PD, 1 1/2", with actuator EE, EW85, stainless steel/PTFE, T-bore, spring return |
| DK340506327 | Piston pressure reducer G1 1/2", stainless steel/EPDM, max. temp. 180°C, inlet max. 25 bar, outlet 6-11 bar |
| DL2D3115050/FL-OG | Pressure-actuated Valve DN50, SK50 Stainless Steel, Flanged |
| DM3403251-03/12-G | Pressure reducer, G1", stainless steel/EPDM, inlet max 25bar, outlet 2-10bar |
| EA300168/L | Y-strainer DN65, PN40, welded ends, stainless steel, fine mesh 0.5mm |
| EAS-010-28-005/4301 | Screen insert, 2", 0.10mm mesh, with support ring |
| EAS-025-26-005/4301 | Screen insert, 1-1/4", 0.25mm mesh, stainless steel |
| EAS-025-28-005/4301 | Screen insert, 2", 0.25mm mesh, stainless steel |
| ED620632/R | Pivoting drive DW63, DIN F05/07, pneumatic, double-acting, clockwise |
| ED621252 | Pneumatic actuator DW125, double-acting |
| EDK43/B | Piston for ED/EW43 actuator |
| EDV2043 | Spare part kit for ED/EE43, NBR |
| EE630432 | Pneumatic actuator EW43, spring-return, FKM sealing |
| ETR0040-11-0014/4408 | Bonnet for DN50 strainer, includes screw-in part and sealing ring |
| ETR0050-12-0014/4408 | Bonnet for DN50 strainer, includes screw-in part and sealing ring |
| EZ000002 | Mounting kit for limit switches on motor actuator |
| FG1523 | Socket 1/2" (DIN2999), stainless steel 1.4408, machined |
| GD311527-NE052100 | Ball valve GD, 1 1/2", with actuator NE05, stainless steel/PTFE-FKM, L-bore, 24VDC, operating time approx. 10s |
| IN5225 | Twin proximity sensor, 10-36V, LED indicator, 4mm switching distance |
| KA110027 | Ball valve 1-1/2", PN30, brass/PTFE-FKM, flange for drive, full bore |
| KSC0200.02.0014/4571 | Disc clamp for overflow valve, Ø20x4, stainless steel |
| MA22-OD50 | Ball valve MA, 3/8" female thread, with actuator, stainless steel/PTFE-FKM, double-acting |
| MBMG2Z323663010 | 2/2-way solenoid valve, G3/8", stainless steel/NBR, 230V AC, combined operated |
| MEMG2S342243015 | 2/2-way solenoid valve, G1/2", stainless steel/EPDM, 24V DC, servo-assisted |
| MO310831 | Pressure gauge, d63, 0-4 bar, axial, glycerine-filled |
| MO335121 | Pressure gauge, d50, 0-6 bar, axial, glycerine-filled |
| MO335221 | Pressure gauge, d50, 0-10 bar, axial, glycerine-filled, stainless steel |
| MO336121 | Pressure gauge, d63, 0-6bar, axial, glycerin-filled |
| MO336321 | Manometer, Ø63, 0-16 bar, axial connection, glycerine-filled |
| MP311006-NE054100 | Ball valve MP, DN40, with actuator NE05, 230V AC, stainless steel 1.4408, PTFE-FKM, operating time 14s |
| MUZ1000.03.0014/4404 | Special screw, M10, stainless steel, for overflow valve |
| NA052100/CPT | Electrical actuator NA05, 50Nm, 24VDC, CPT, operating time 8-14 sec, 14mm octagon, manual override, optical position indicator |
| NA052100/PCU | Electrical actuator NA05, 50Nm, 24VDC, PCU, operating time 8-14 sec, 14mm octagon, with positioner |
| NA094100/PCU | Electric actuator NA09, 90Nm, 230V AC, 17mm square |
| NE052100 | Electrical swivel drive NE05, 50Nm, 24V DC, running time approx. 10 sec, 14mm octagonal |
| NE054100 | Electric actuator NE05, 50Nm, 230V AC, 14mm octagon |
| NE054100/PCU | Electric swivel drive NE05, 50Nm, 230VAC, PCU, running time 14 sec, 14mm octagonal |
| NE064100 | Electric actuator NE06, 60Nm, 230V AC, 17mm square |
| NG301008 | Relief valve DN65, input/output with air lever, stainless steel 1.4571, flanged |
| NG301009 | Pressure relief valve DN80, input/output with air lever, stainless steel 1.4571, flanged |
| NZW00001 | Plastic gear NA05 |
| ODV7210 | Spare part kit, Silastic, for -40°C to +80°C |
| PD311527-EE620852 | Piston pressure reducer DN65, stainless steel/EPDM, flanged, max. temp. 180°C, inlet max. 16 bar, outlet 1-3.5 bar |
| SCH0300.03.0044/4404 | Disc for check valve G1", stainless steel |
| SG2241 | Solenoid coil, 24V DC, 7W |
| SG2248 | Coil, 24VDC, 25W |
| SPD0100.14.1304/4571 | Spindle, 63mm, stainless steel, G1-1/2", for overflow valve |
| SS000202 | Limit switch, electrical/mechanical, roller contact, max 250V AC |
| TA | Butterfly Valve with Pneumatic Actuator |
| TA-M245-NO-40-001 | Barrel and armature, 2/2, size 45, FKM, AC/DC, normally open |
| TA-N243-NC-40-001 | Barrel and armature, 2/2, size 43, EPDM, DC, non-ferrous metal |
| TA534009-NE054100 | Butterfly valve TA, DN80, with actuator, ductile iron/stainless steel/EPDM, 230V AC |
| TA634009-ED620632 | Butterfly valve TA, DN80, with actuator, aluminum/stainless steel/EPDM, double-acting |
| TAH60012 | Hand lever for butterfly valve, DN125-150, aluminum, 14mm |
| TN111528-EE620852 | Ball valve TN, 2", with actuator EE, EW85, brass/PTFE-FKM, T-bore, spring return |
| TS12105800250 | Head end sprocket assembly |
| TS12106182680 | T-chain without pads, 62mm, 187 links |
| TS13358601753 | Tail end plates, 450.96 x 611.48 x 10mm |
| TS13358605053 | Chain pad with rubber, 15 x 42 x 75mm |
| VDX2D3114040 | Service kit, G1 1/2"/DN40, PTFE, SK63 |
| VDX2D3115040 | Spare parts kit, G1 1/2", PTFE |
| VDX2D3131015 | Service set, G1/2", PTFE, SK50, RAGM |
| VN111425-ED620552 | Valve with actuator |
| VST1415.06.0054/K300 | Plastic cap, M14x1.5, SAN (clear) |
| WA334009-EE620852 | Butterfly valve WA, DN80, with actuator EE, EW85, stainless steel/stainless steel/EPDM, spring return |
| WA554010 | Butterfly valve DN100, PN10/16, EN558-2, GG/EPDM/GGG-40, ISO 5211 |
| WAM40013 | Cuff, DN200, EPDM, with reinforcement rings |
| WGS-PA-NBR-100 | Packing set, GFO/TWARON edge-reinforced fiber, NBR O-ring, PTFE-lubricated synthetic fiber |
| WGS-PD-AL-100 | Pneumatic actuator, double-acting, for knife-gate valve DN100 |
| WGS-PD-AL-150 | Pneumatic actuator, double-acting, for DN150 knife gate valve |
| WGSB-PA-EPDM-300 | Packing set, DN300, bidirectional, GFO/TWARON edge-reinforced fiber, EPDM O-ring, PTFE-lubricated synthetic fiber |
| WOS-PA-EPDM-500 | Packing set for WOE DN500 |
| XVDG2D3125020/A25 | Service set, G3/4", SK50 brass, OG-OS, stainless steel/PTFE, for XDG2D3125020/A28 |
| XVDG2D3125020/A26 | Service set, G3/4", SK50 brass, stainless steel/PTFE |
| XVDG2D3921015/A01 | Service kit, G1/2", SK50 |
| XVDM2D3125025/A02 | Service set, DN25, SK50, OS |
| ZAK30028 | Ball, 2", stainless steel, for ZA/ZE ball valves |
| ZD311426 | 3-way ball valve, 1 1/4", PN40, L-bore, stainless steel/PTFE-FKM, ISO 5211 |
| ZD311567-HE621152 | Ball valve ZD, DN50, with actuator HE, EW115, stainless steel 1.4408/PTFE-FKM, T-bore, spring return |
| ZDK30502 | Ball ZD, DN15, T-bore, Stainless Steel |
| ZPK30004 | Ball, DN25, stainless steel, for ZP311004 |
END-Armaturen: Common Questions
END-Armaturen is a broad-line industrial valve manufacturer, covering butterfly, ball, knife-gate, solenoid, check, safety, and control valves, plus actuators, strainers, flanges, and fittings, with over 720,000 products in stock. Brewing and beverage service is one of its many applications.
END-Armaturen valves come in ductile iron, stainless steel, aluminum and plastics, commonly at PN 10 and PN 16, with DVGW, ATEX, CE, and ISO 9001 certifications available depending on the product.
Yes. We source pneumatic- and electric-actuated ball and butterfly valves as complete assemblies, as well as stand-alone actuators and the sealing/repair kits to service them.
Browse by Category
Related Manufacturers
Need END-Armaturen parts?
Send us a part number, machine model, or a photo of the nameplate. We typically respond within one business day.
