Request a QuoteWe distribute and service Wandres micro-cleaning systems in the U.S. Wandres GmbH micro-cleaning, founded in 1981 in Buchenbach in Germany's Black Forest, builds contactless and low-contact systems that remove dust, fibers, swarf, and micro-particles from surfaces just before coating, lamination, printing, or assembly. That's the point where a single stray particle turns into a reject.
The core technology is the Sword Brush, a linear brush that combines fine, self-cleaning filaments with an integrated Tornado suction channel to lift particles off the surface and carry them away in a single pass. A pneumatically regulated pressure buffer keeps the filaments meeting the surface vertically, holding consistent wiping pressure across wavy or uneven material, and integrated ionising and micro-moistening neutralize static so fine dust releases from plastics, glass, and coated boards instead of clinging.
The full range spans stationary and moving formats, including Evomat and Cevomat units and the Fox Panel Cleaner for pressed blanks and boards; Sword Brush, Combi Sword Brush, and Tornado Channel for panels and laminates; the Web Sword Brush for continuous web, strip, and coil; the robot-mounted Robot Sword Brush Laura for contoured parts and car bodies; and manual tools such as the micro-cleaning suction gun and vac-blast cleaner for rework, blind holes, and crevices.
We stock and support these units with sales, spare parts, operator training, and application help, across furniture and panel production, sheet-metal and coil lines, glass and solar, converting (paper, film, foil, labels), and automotive finishing. Unlike compressed-air blow-off, which just relocates and re-deposits particles, Wandres systems dislodge them mechanically and capture them immediately for a genuinely clean, coat-ready surface.
Need Wandres Parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteWandres Product Lines

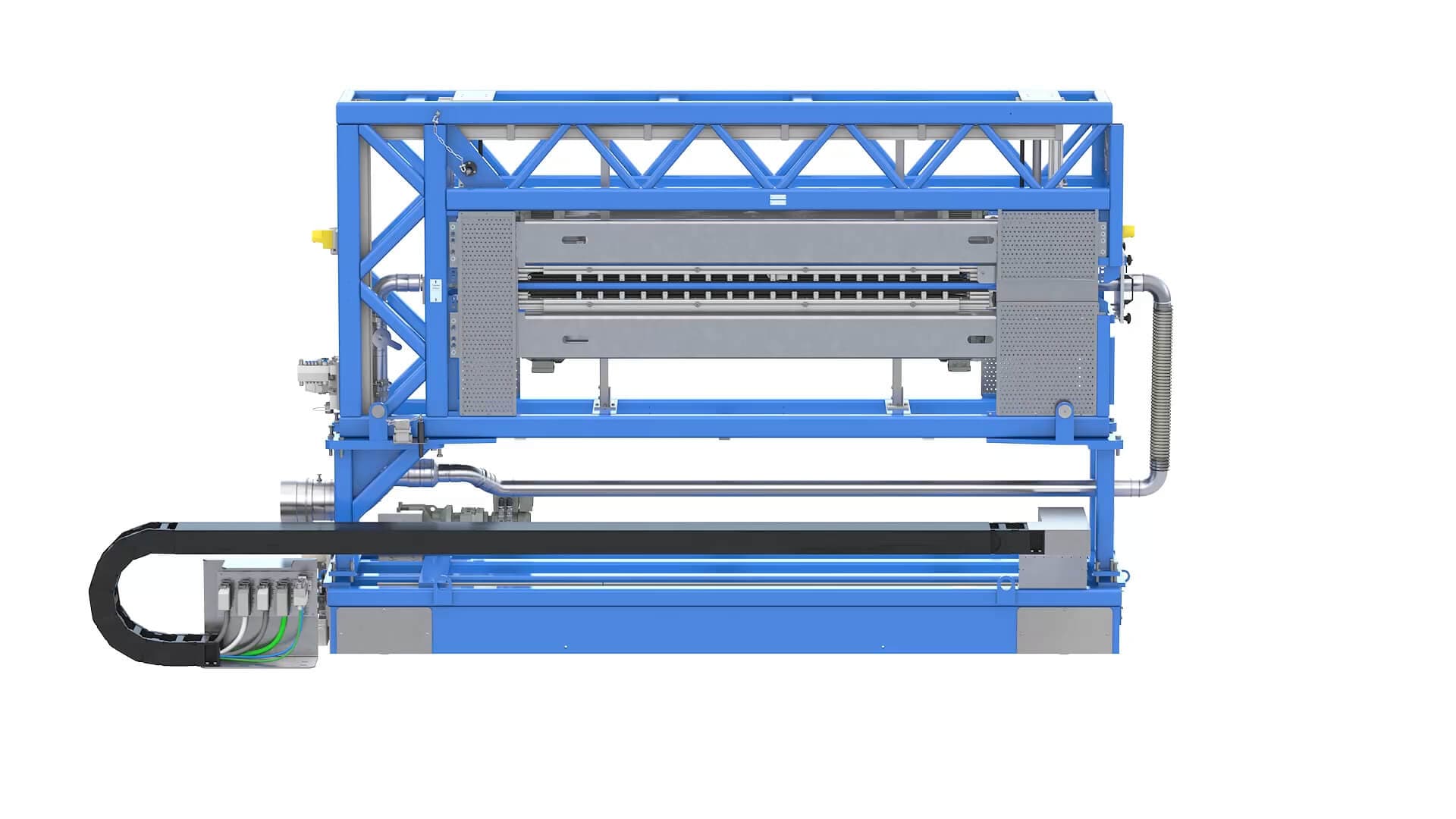

Cevomat
The Cevomat is a self-cleaning metal-strip cleaning system that removes contamination from steel, stainless, aluminum, and non-ferrous coil from both top and bottom.
Details & quote
CF05 CVT05
The CF05 / CVT05 are compact base-model cleaning units built on the Wandres Sword Brush principle, available in several versions for different applications.
Details & quote
DSH46
The DSH46 is a double-sided cleaner with two linear Sword Brushes that clean the top and bottom of a workpiece in a single pass.
Details & quote
Evomat 05
The Evomat 05 cleans blanks, tailored blanks, molded blanks, and aluminum blanks before they feed into a press line.
Details & quote

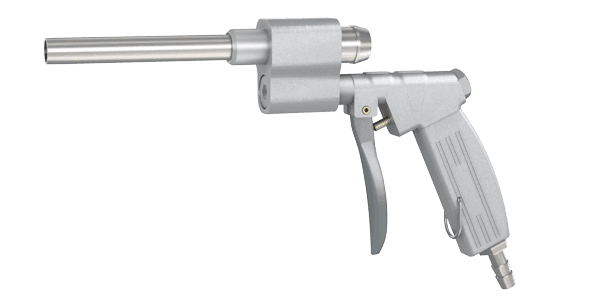

Micro-Cleaning Suction Gun
The micro-cleaning suction gun is a handheld tool that collects debris, swarf, dust, fibers, and liquids by suction, avoiding the compressed-air blasts that scatter.
Details & quote
Micro-Cleaning Vac Blast Cleaner
The micro-cleaning vac-blast cleaner is an ergonomic handheld unit that combines controlled suction and air blow to remove particles and liquids from hard-to-reach.
Details & quote

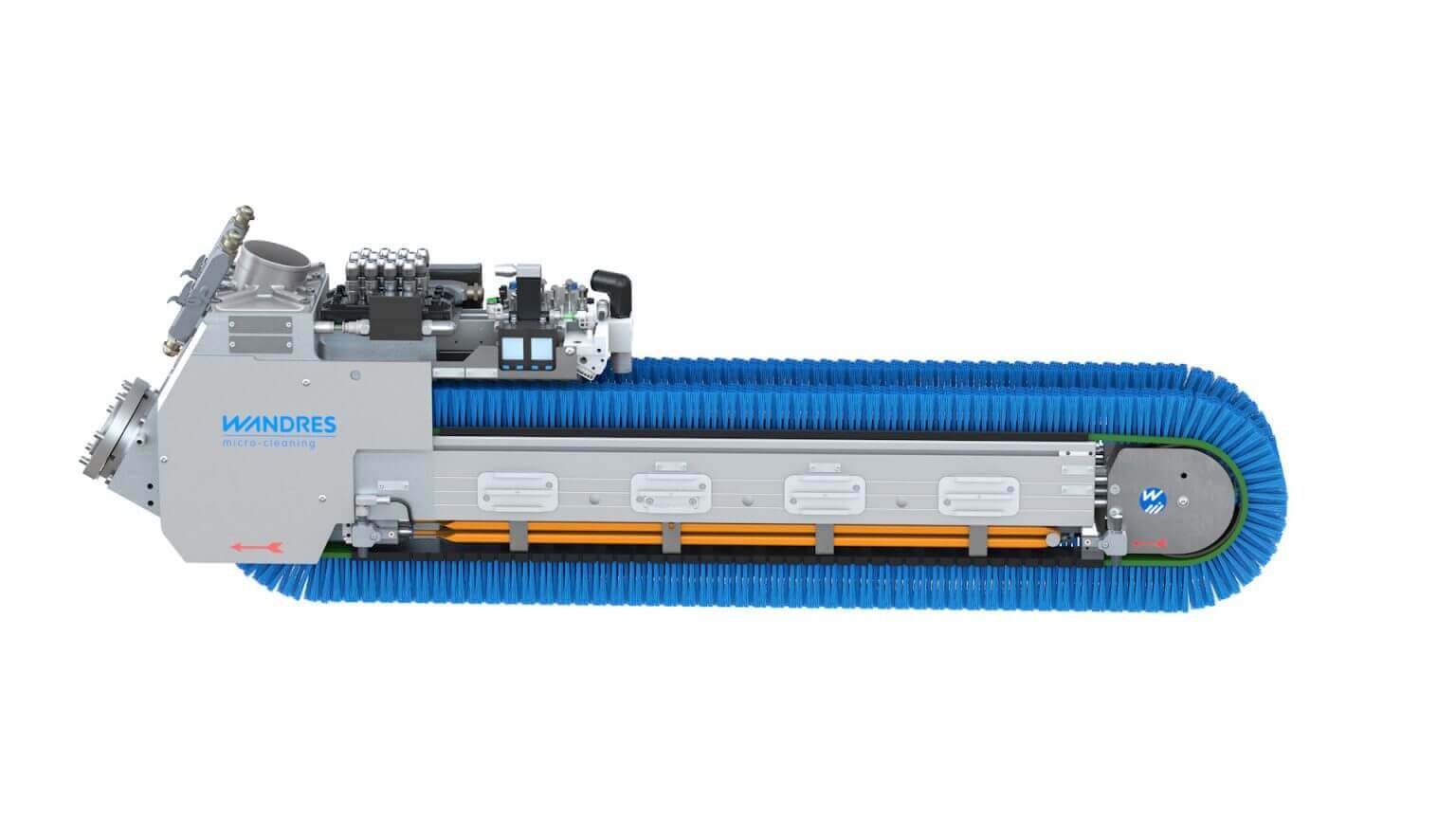

Robo Sword Brush
The Robo Sword Brush mounts a Wandres Sword Brush on a robot arm to clean three-dimensional surfaces, following contours that flat cleaning cannot reach.
Details & quote

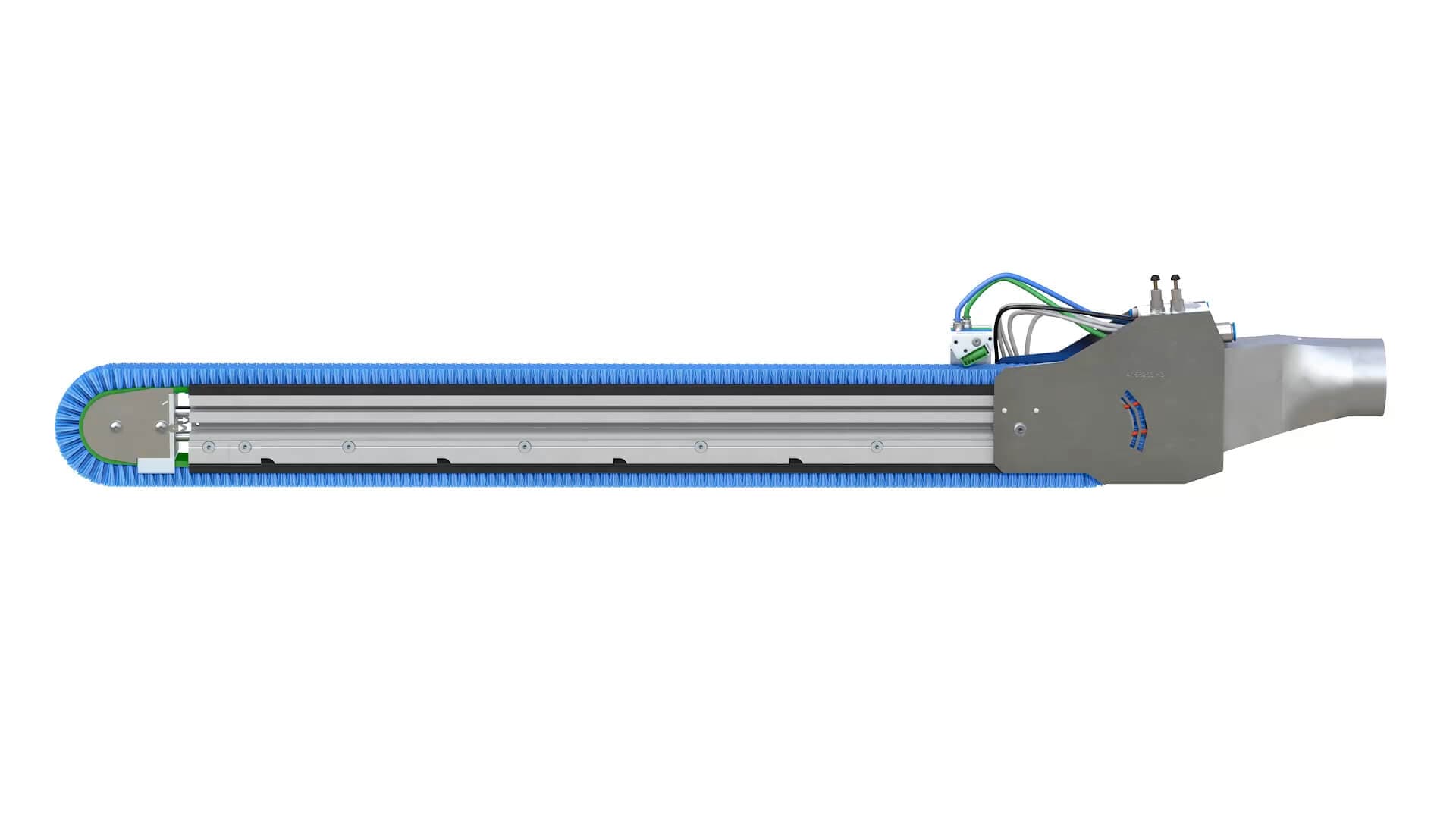

Sword Brush
The Wandres Sword Brush is a contact-brush cleaning bar.
Details & quoteTypical Applications
- Contactless dust and particle removal on boards, panels, and laminates before coating or lamination
- Top- and bottom-side cleaning of sheet-metal blanks, coil, and electrical steel before pressing or coating
- Web, strip, and film cleaning on continuous converting and print lines (Web Sword Brush)
- Robot-guided cleaning of car bodies, fenders, and contoured plastic parts before lacquering (Robot Sword Brush Laura)
- Flat, solar, and display glass cleaning ahead of coating or assembly
- Manual rework and cleaning of blind holes, crevices, and 3D parts with the suction gun and vac-blast cleaner
Example Wandres Part Numbers We Source
A representative, non-comprehensive sample of Wandres part numbers and type codes we source. Don't see yours? Send it over. We source the full catalog.
| Part Number | Description |
|---|---|
| 1-003-65-4072 | Micro infeed cylinder |
| 2-029-65-5750 | Bracket |
| 2-209-66-0960 | Arbor, stainless steel |
| 3-402-08-7792 | Holder for micro infeed |
| 4-008-24-0317 | PKZM-32.00, 25-32A |
| 4-008-24-0325 | NHI-B-11 PKZ0 |
| 24F017 | Protection plug for guide carter |
| 28F034 | Gear, z=27 |
| 42A047 | Push-button pendant |
| 48F004 | Locking blade key, CH60 |
| 280-073 | INGROMAT W Cleaning and Antistatic Liquid, 1000 Liter |
| 2104A0010 | Emergency microswitch, XY2 CH13353, for Biesse Rover 321 |
| 2115A0102 | Lamp for Biesse Roxyl 5.5 |
| 2280-003 | Sword Brush |
| C28B002 | Brushless motor |
| C79S005 | Signal cable |
| C143C4010 | Lifting nut |
| C690E0510 | Microswitch with button, FD510 |
| C690E0615 | Microswitch, small wheel |
| C73700006 | Pendant card, CANbus |
| C73700016 | Protective cover, 15", for Blizz/Rotex/Litox |
| C73700039 | Operator interface, RPC 15", 24VDC, 2-flash |
| C20005604008 | Gasket, MIM |
| C22035050060 | Buffer, OG6, D=60 |
| SN68072 | Linear Quadro Sword Brush, 2750 mm Working Width, 0.127 mm Bristle Diameter |
Wandres: Common Questions
An air blast mostly moves particles around and re-contaminates nearby surfaces. The Sword Brush mechanically dislodges dust and fibers with fine filaments and captures them immediately through an integrated Tornado suction channel, so the surface is genuinely clean and coat-ready in one pass.
Yes. A pneumatically regulated pressure buffer keeps the filaments vertical and evenly loaded on wavy or profiled material, and the robot-mounted Robot Sword Brush Laura handles contoured parts such as car bodies and fenders. Manual suction and vac-blast tools reach blind holes and crevices.
Yes. Integrated ionising (anti-static) and micro-moistening neutralize the surface charge that makes fine dust cling to plastics, glass, and coated boards, so particles release and are captured rather than re-settling.
