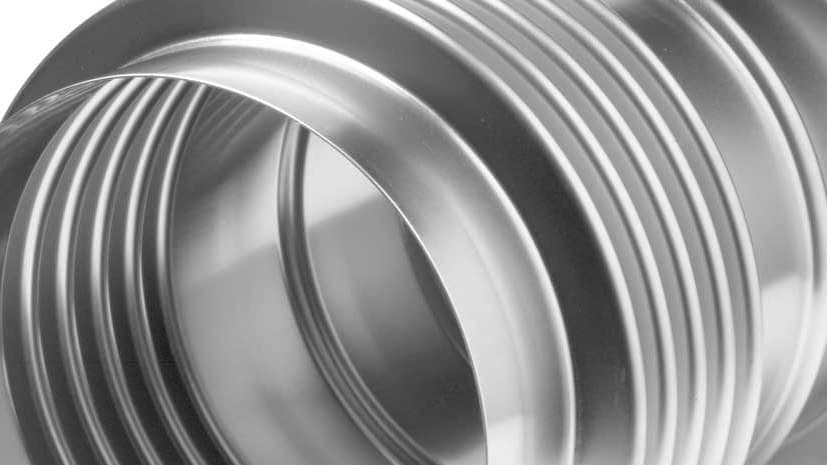

SKODOCK Bellows
SKODOCK stainless and special-alloy bellows, the flexible element inside a compensator, specified by movement, pressure and cycle life.
Need SKODOCK Bellows?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteThe bellows is the flexible element at the heart of a metal expansion joint or compensator, formed from thin-wall stainless or special alloy into a corrugated profile that flexes without fatiguing.
Wall thickness, ply count and convolution geometry set the trade-off between movement capacity and pressure rating: more plies raise pressure capability, deeper convolutions raise movement. Cycle life falls off quickly if the bellows is asked to take more movement than it was formed for.
Send the bore, required movement, cycle expectation, medium, and operating temperature and pressure, and we will quote against the specification.
Applications
- Expansion joint replacement
- High-temperature pipe systems
- Cyclic movement duty
- Corrosive and special-alloy service
More From SKODOCK

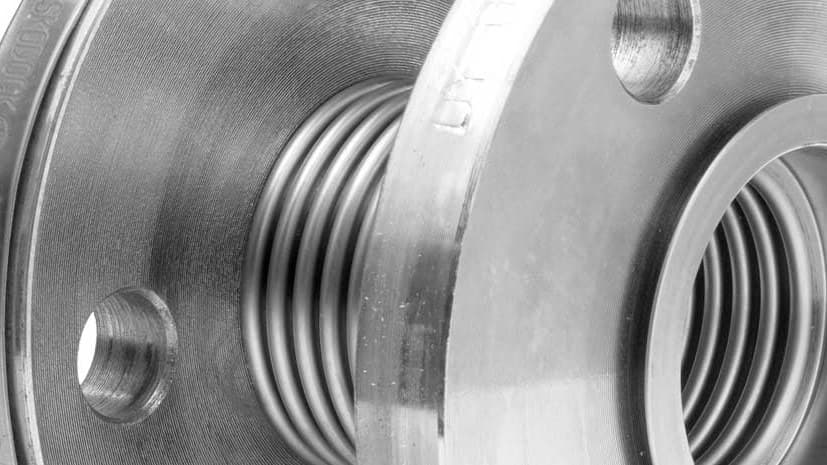

Expansion Joints
SKODOCK expansion joints that take axial, lateral and angular movement off flanges, pump nozzles and vessel connections.
Details & quote

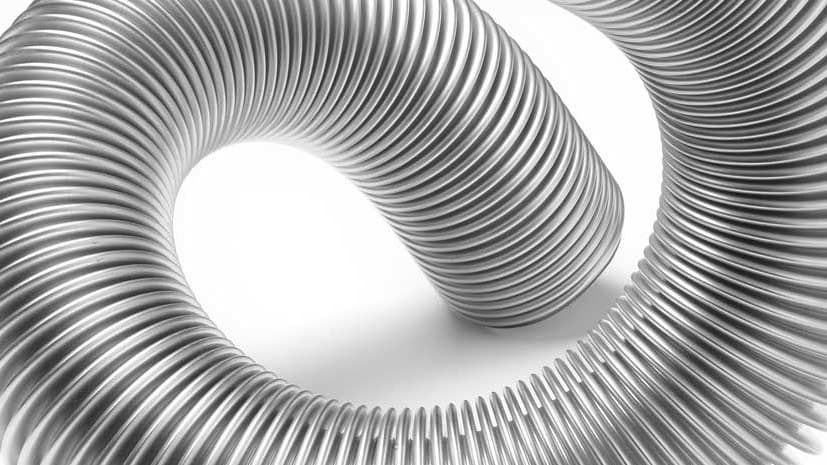

Metal Hoses
