Manufacturer
Laweco
Lift Tables, Feeding & Separating Stations
Need Laweco Parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteWe are the U.S. distributor for LAWECO, the Espelkamp, Germany manufacturer (founded 1979) that ranks among Europe's leading builders of custom lift tables and lifting systems. LAWECO's strength is engineering each table to the load, stroke, table format, and duty cycle of the job rather than selling a fixed catalog, and we bring that build-to-spec capability to North American plants and production lines.
We supply LAWECO scissor lift tables in all four LAWECO drive technologies, namely hydraulic, spindle, push-chain (Schubketten), and belt. Capacities run from light ergonomic units up to heavy plant lift tables (Anlagenhubtische) rated for very heavy plant loads. Every table uses a closed-section top frame on solid steel scissors and a self-supporting base frame that needs no special foundation, giving maximum rigidity, precise guidance, and the freedom to relocate the unit when the line is reconfigured.
The line also includes low-profile flat-form lift tables at roughly 80 mm build height (to about 1,300 kg) that install without a pit, loading lift tables for dock and truck work, and material-handling stations such as the LAWECO Feeding Station for two-sided ergonomic feeding with millimeter indexing and the Separating Station that pulls single sheets or blanks from a full stack in continuous three-shift operation. Turntables, tilting devices, and roller conveyors can be integrated on the platform.
Beyond the factory floor, LAWECO builds CARGO MASTER aircraft ground-handling loaders for the aviation sector. We stock and coordinate U.S.-based hydraulics, controls, and spare parts, and we quote custom LAWECO configurations to your capacity, height, and cycle requirements. Send us the load, travel, and platform size and we will spec the table.
Need Laweco Parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteLaweco Product Lines
Feeding Station

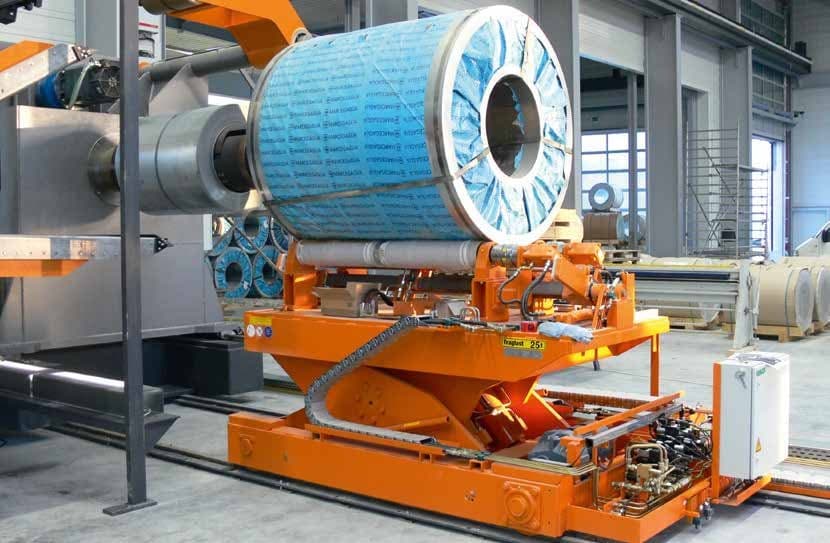

The LAWECO Feeding Station raises and positions material for ergonomic two-sided feeding, with vertical indexing in millimeter increments so operators or automation.
Details & quote
Heavy-Duty Platform

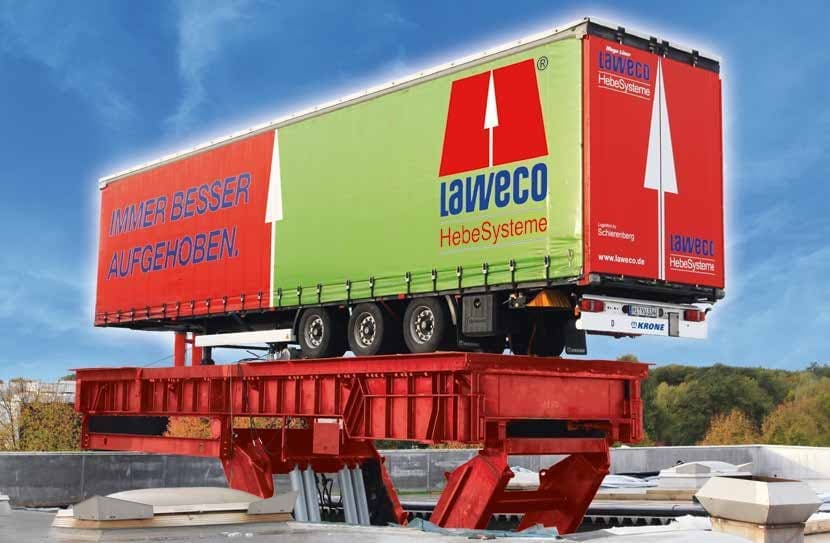

The LAWECO Heavy-Duty Platform is a hydraulically driven scissor lift built for machine-line feeding and support at high load capacity.
Details & quote
Separating Station

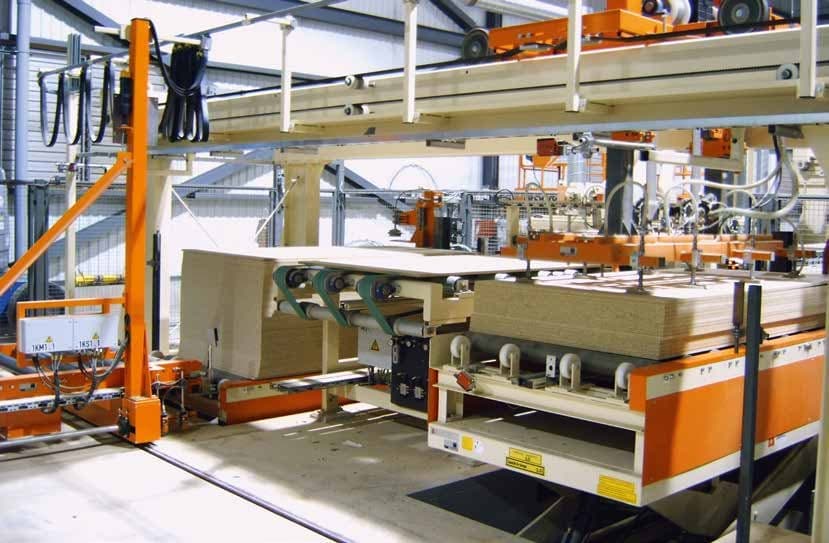

The LAWECO Separating Station feeds single sheets or blanks from a large stack in continuous three-shift operation.
Details & quoteTypical Applications
- Ergonomic two-sided feeding at a consistent working height with millimeter-increment indexing (Feeding Station)
- Automated single-sheet or blank separation from a full stack in continuous multi-shift production (Separating Station)
- Machine-line feeding and support with heavy-duty hydraulic platforms rated to 100+ tons
- Pit-free workstation and pallet positioning using low-profile flat-form lift tables
- Dock and truck loading/unloading with loading lift tables
- Aircraft ground handling and cargo loading with CARGO MASTER equipment
Example Laweco Part Numbers We Source
A representative, non-comprehensive sample of Laweco part numbers and type codes we source. Don't see yours? Send it over. We source the full catalog.
| Part Number | Description |
|---|---|
| 04-0822-01-02-000-01 | Lift Table Assembly Drawing Reference |
| 20-0471-040-000 | Safety Ring to DIN 471, 40 x 1.75, for Shaft |
| 30-100-0350-111306-H | Hydraulic Cylinder, 100 mm Bore x 350 mm Stroke |
| 30-120-0550-110469-H | Hydraulic cylinder, D=120 x 550 stroke |
| 61-9085-0005 | Running Roller LR 85, Complete with Bearing (article No. 211599) |
| 61-9220-0005 | Running Roller 220 (article No. 211613) |
| 63-2040-0005 | Running Roller Bolt for LR 85, Welded, 12 mm Pin Hole (article No. 211729) |
| 208836 | Seal Kit for 120 mm Bore Hydraulic Cylinder, Type 30-120-0550 |
| 209486 | Hydraulic Pump, 8 cm3, 280 bar |
| 209504 | Hydraulic Pump, 14 cm3, 280 bar |
| 213878 | Hydraulic Cylinder, 100 mm Bore x 200 mm Stroke |
| 214635 | Hydraulic Cylinder for Lift Table, 60 mm Bore x 150 mm Stroke |
| 216221 | Hydraulic Pump, 11 cm3, 280 bar |
| 217606 | Seal Kit for 120 mm Bore Hydraulic Cylinder |
| 218176 | Hydraulic Cylinder, 120 mm Bore x 550 mm Stroke |
| 222862 | Electric Motor, 6.3 kW, 480 V 60 Hz, 300 mm Frame, UL, IE3 |
| 222863 | Electric Motor, 4.55 kW, 480 V 60 Hz, 250 mm Frame, UL, IE3 |
| 222882 | Electric Motor, 8.6 kW, 480 V 60 Hz, 300 mm Frame, UL, IE3 |
| 223383 | Hydraulic Cylinder, 120 mm Bore x 400 mm Stroke |
Laweco: Common Questions
LAWECO builds everything from light ergonomic tables to heavy plant lift tables rated for very heavy plant loads, plus low-profile flat-form models up to about 1,300 kg. Because every table is engineered to the application, we can match capacity, stroke, and table size to your exact load and duty cycle.
LAWECO offers all four. Hydraulic suits high loads and long strokes; spindle, push-chain, and belt electromechanical drives suit clean, precise, or high-cycle positioning. Tell us the load, travel, speed, and environment and we will recommend the drive.
Not necessarily. The base frame is self-supporting and needs no special foundation, and the flat-form models at roughly 80 mm build height are designed to sit on the floor without a pit, so they can be repositioned as the line changes.
