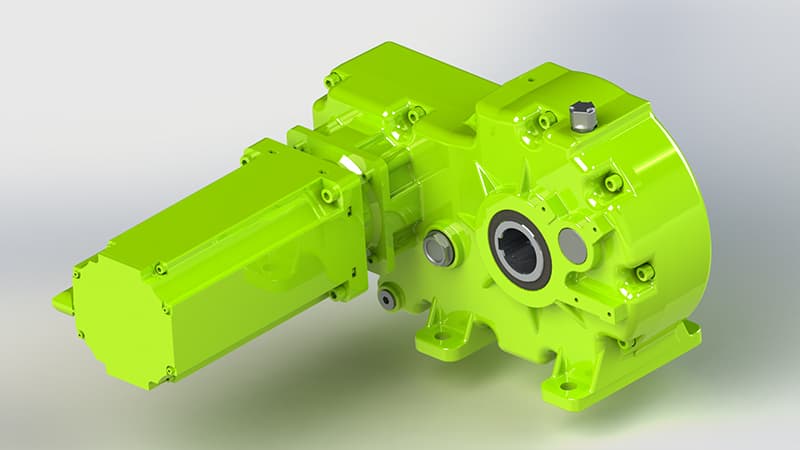

CEDS DURADRIVE Worm Gears
CEDS DURADRIVE worm gearboxes provide a right-angle drive with self-locking capability (useful where back-driving must be prevented), combined with CEDS motors as.
Need CEDS DURADRIVE Worm Gears?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteCEDS DURADRIVE worm gearboxes provide a right-angle drive with self-locking capability (useful where back-driving must be prevented), combined with CEDS motors as geared-motor units with application-specific ratios.
Specifications
| Gear type | Worm (right-angle) |
|---|---|
| Key feature | Self-locking capability |
| Ratio | Individually designed (high single-stage reductions) |
| Integration | Supplied as geared-motor units |
Specifications are indicative and vary by model. We confirm exact specs on your quote.
Applications
- Self-locking lift/positioning drives
- Conveyors and rotary tables
- Material handling
- Compact right-angle drives
Example CEDS DURADRIVE Worm Gears Part Numbers We Source
A representative, non-comprehensive sample of CEDS DURADRIVE Worm Gears part numbers and type codes we source. Don't see yours? Send it over. We source the full catalog.
| Part Number | Description |
|---|---|
| 2152-0010-72 | Worm wheel |
| 2153-0016-01 | Worm shaft |
| 2153-0050-70 | Worm shaft, A40, module 2.0, D=30 |
| 2154-0017-70 | Worm wheel, Z20, module 2.0, 15° right-hand |
| SC010711 | Worm gear, 90°/45°, F07, alloy, max. torque 180Nm |
CEDS DURADRIVE Worm Gears: Common Questions
It holds a load without a brake. On a lifting or positioning duty that removes a component and a failure mode, which is often why a worm gearbox is chosen over a spur one.
For a right-angle output, a high reduction in a single stage, and load-holding. Spur and helical units are more efficient where you need neither.
The ratio, the output torque and speed, the mounting and output style, and the motor it pairs with.
Yes, as bare reducers or integrated with the CEDS motor range.
