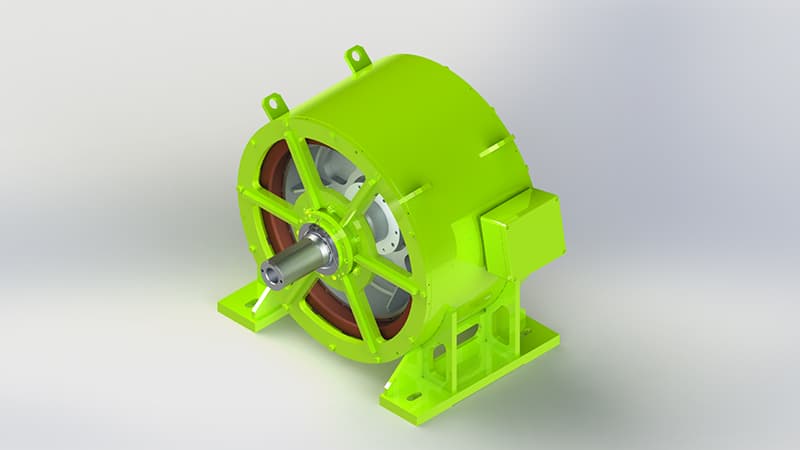

CEDS DURADRIVE Synchronous Servo Motors
CEDS DURADRIVE synchronous servo motors are permanent-magnet designs offering high power/torque density, low inertia, and compact builds for highly dynamic, precise.
Need CEDS DURADRIVE Synchronous Servo Motors?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteCEDS DURADRIVE synchronous servo motors are permanent-magnet designs offering high power/torque density, low inertia, and compact builds for highly dynamic, precise positioning, with high acceleration, high efficiency even at low speed, and excellent speed stability.
Specifications
| Torque range | 1 Nm to 18 kNm |
|---|---|
| Power range | Up to 1 MW |
| Max speed | Up to 60,000 rpm |
| Voltage | Up to 690 VAC (also 380/400 V) |
| Efficiency | Up to 97% |
| Options | Permanent magnet, optional holding brake |
Specifications are indicative and vary by model. We confirm exact specs on your quote.
Applications
- High-dynamic positioning axes
- Machine tools and robotics
- Torque-motor direct drives
- Precision automation
CEDS DURADRIVE Synchronous Servo Motors: Common Questions
Permanent-magnet synchronous servo motors deliver high torque density in a compact frame with precise, dynamic motion, which is what positioning duty needs.
An integrated encoder or resolver, at 400 V class three-phase supply, with an optional holding brake.
The nameplate designation, or the torque and speed required, the frame and shaft, the feedback type your converter expects, and whether you need a brake or gearbox.
These are built for the matched CEDS servo converters. Send what you are running now and we will confirm compatibility before quoting.
