Manufacturer
Brandenburger
High-Temperature Thermal Insulation for Presses & Platens
Need Brandenburger Parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteWe supply Brandenburger high-temperature thermal insulation in the U.S.: the press-platen and heated-tooling insulation that press builders around the world specify as standard. Brandenburger's Insulation Technology division has spent 75-plus years developing heat-protection materials, and its plates are fitted as OEM components by the major press manufacturers including Wemhöner, Siempelkamp, Dieffenbacher, Bürkle and Italpresse.

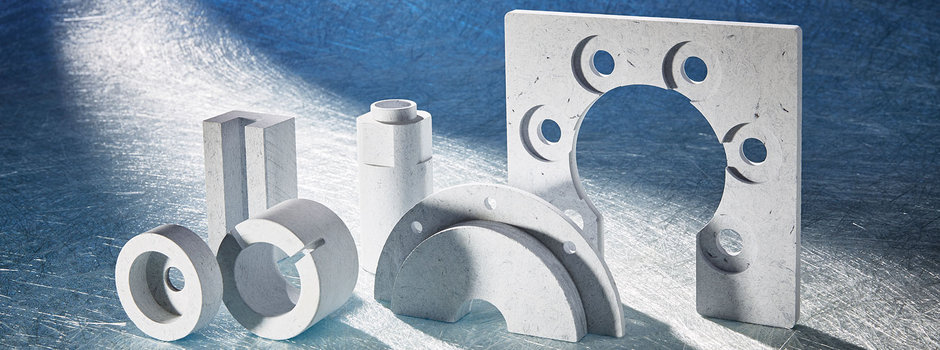

The range is built around a few asbestos-free material families, each for a different duty. BRA-GLA glass-fiber/thermoset laminates and BRA-GLA SI/3/KA/MP/N variants for high-pressure heat protection; BRA-BOARD HT 4 and HT 175 silicate and magnesium-silicate boards; GL-M and GL-P mica/silicone grades for the highest continuous operating temperatures; KV 3 heat-protection plate; the flexible fluoropolymer-and-glass BRA-FLEX; and the S 4000 / S 4000 HT glass-mat laminates. The common thread is holding compressive strength and insulating performance under the sustained heat and pressure of industrial press operation.
These materials go under and around press platens and heated tooling in laminating and coating lines, and in the rubber/tire, plastic injection-molding, and mold-making industries as well as wood-panel and furniture production. We can supply plates cut and machined to your platen dimensions and hole patterns.
A separate Brandenburger company runs a pipe-relining business and is unrelated to the insulation line. Send the grade, plate size, or machine nameplate and we quote within one business day.
Need Brandenburger Parts?
Send a part number or nameplate photo. We respond within one business day.
Request a QuoteBrandenburger Product Lines

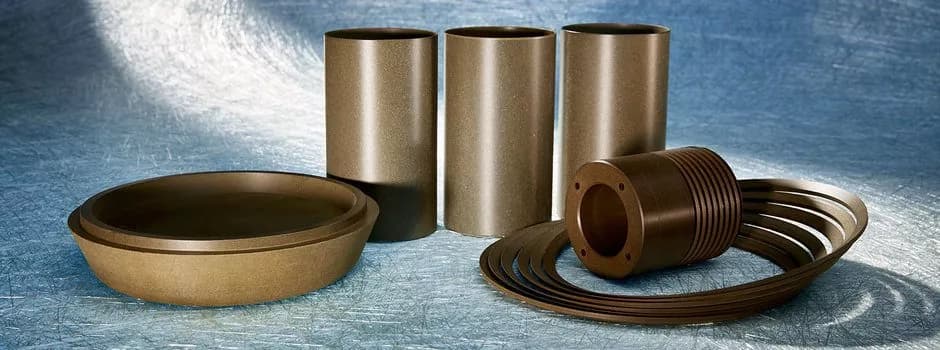

Ablation Material
S 5000 is Brandenburger's ablation material, built for aerospace and other extreme, short-duration thermal-exposure applications where the material is designed to.
Details & quote

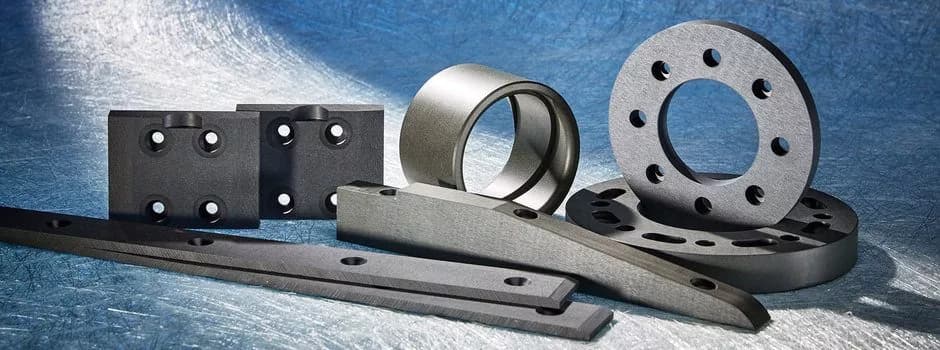

Sliding Material
BL 30 is Brandenburger's sliding/anti-friction material, used where a press or tool needs a low-friction bearing surface that can also take heat and mechanical.
Details & quote

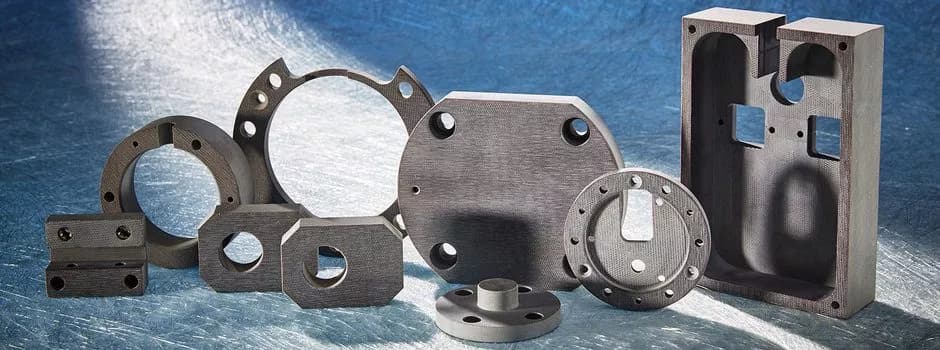

Thermal Insulation Material
Brandenburger's thermal insulation boards sit directly inside a heated press's clamping-force path.
Details & quoteTypical Applications
- Press platen insulation on short-cycle and continuous laminating/coating lines
- Heated-tooling and hot-plate protection in molding and forming
- Rubber and tire industry press insulation
- Plastic injection molding and mold-making heat barriers
- Wood-panel, flooring and furniture press lines
- Cut-to-size insulation plates fabricated to platen dimensions and bolt patterns
Example Brandenburger Part Numbers We Source
A representative, non-comprehensive sample of Brandenburger part numbers and type codes we source. Don't see yours? Send it over. We source the full catalog.
| Part Number | Description |
|---|---|
| AAI0220001 | Insulating block, BRA-GLA-N, 200 x 200 x 30 mm |
| AAI0220012 | Insulating block, BRA-GLA-N, 240 x 240 x 80 mm |
| AAI0220027 | BL 20/1 GG EP ground insulation, 630 x 16 x 8 mm |
| AAI0220043 | BRA GLA Si insulation board, 2750 x 180 x 15 mm, divided into 2 pieces |
| AAI0220044 | BRA GLA N insulation board, 2750 x 180 x 25 mm |
| AAI0220045 | BRA GLA Si insulation board, 2750 x 260 x 15 mm, divided into 2 pieces |
| AAI0220046 | BRA GLA N insulation board, 2750 x 260 x 25 mm |
| AAI0220047 | BRA GLA Si insulation board, 2750 x 300 x 15 mm, divided into 2 pieces |
| AAI0220048 | BRA GLA N insulation board, 2750 x 300 x 25 mm |
| AAI0220049 | BRA GLA Si insulation board, 400 x 400 x 20 mm, pre-drilled |
| AAI0220082 | BRA GLA 3 insulation board, 630 x 484 x 15 mm |
| BL 30 | Sliding/anti-friction Material |
| BRA-GLA 3 | Rigid Glass-fabric Thermoset Laminate |
| BRA-GLA MP | Glass-fabric Laminate, MP Grade |
| KV 3 | Pressure-resistant Thermoset Glass-silk Grade |
| KV 3eco | Eco Variant of KV 3 Grade |
| S 5000 | Ablation Material for Aerospace Applications |
| SUPRATHERM H | grade (legacy Designation) |
| SUPRATHERM HT 4 | grade (legacy Designation) |
| SUPRATHERM HT 175 | grade (legacy Designation) |
| XGD 16 | Lightweight Insulating Material |
| XGD 25 | Lower-density Insulating Material |
| XGD 60 | Medium-density Insulating Material |
| XGD 80 | High-density Insulating Material |
Brandenburger: Common Questions
It depends on temperature and load. Use BRA-GLA laminates and KV 3 for high-pressure heat protection, BRA-BOARD silicate boards for structural insulation, and GL-M/GL-P mica grades for the highest continuous temperatures. Send your operating temperature and platen size and we'll match the grade.
Yes. Brandenburger's BRA-BOARD and related grades are asbestos-free silicate and magnesium-silicate materials, which matters for both performance and worker-safety compliance.
Yes, plates are supplied cut and machined to your platen size and hole pattern. Send the dimensions or the nameplate details with your request.
