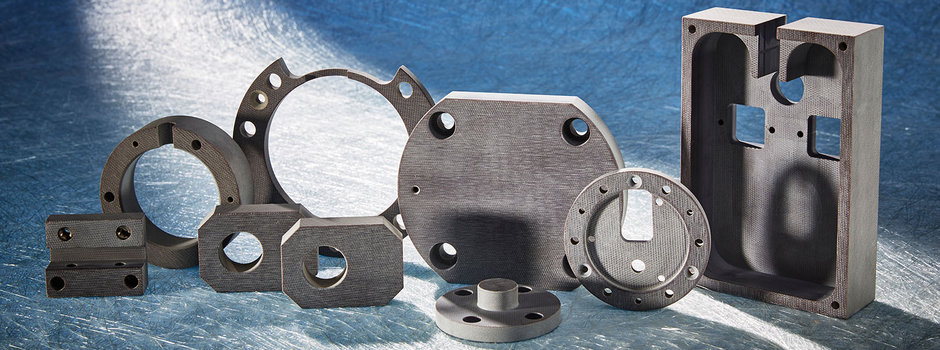

BRANDENBURGER BRA-GLA® 3 was developed especially for the wide range of requirements in the manufacturing of tools and dyes, and consists of a combination of high-quality thermoset resin and fine glass fibers.
Special material characteristics:
- Very High Dimensional Stability
- Good Insulation Properties
- Very High Compressive Strength
- Coefficient of Expansion Similar to that of Steel
Areas of application:
BRA-GLA 3 is mainly used as heat protection for injection moulding machines, as well as on presses, as piston and frame insulation.
With its high e-module, low mass dissipation when exposed to thermal stress for long periods and expansion properties similar to that of steel, BRA-GLA® 3 is suitable for many machine engineering applications; e.g. blow-moulding machines, as well as packaging and extrusion systems.
Its very high dielectric resistance makes it also suitable for switch cabinet and apparatus engineering.
| Thermal | ||
|---|---|---|
| Temperature resistance (short-term) | 250 ℃ | 482 ℉ |
| Temperature resistance (long-term) | 230 ℃ | 446 ℉ |
| Thermal conductivity | 0.3 W/mK | 0.17 btu/ft h ℉ |
| Coefficient of the linear expansion | 11•10-6 | 11•10-6 |
| Mechanical | ||
| Compressive strength (room temperature) | 650 N/mm2 | 94274.5 psi |
| Flexual strength | 425 N/mm2 | 61641 psi |
| Compressive strength (200 ℃) | 350 N/mm2 | 50763 psi |
