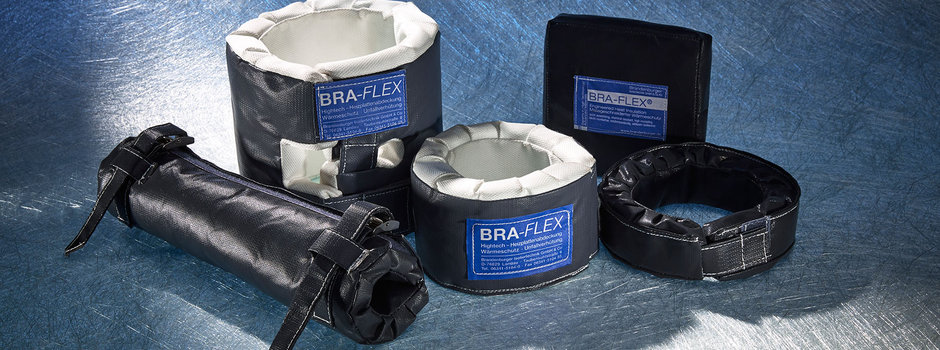

The BRA-FLEX® material has three layers. The outer layers consist of FP-coated fabric (fluoropolymer-coated), and the inner layer is made of needle-punched glass mats with high thermal insulation capability. The layers are tightly sewn together with highly temperature-resistant thread.
Special material characteristics:
- High Long-Term Temperature Resistance
- Flexible Application Options
- Very Good Resulting Insulation Effect
- Good Chemical Resistance
Areas of application:
BRA-FLEX® is suitable for the exterior insulation on large heated moulds. BRA-FLEX® significantly reduces heat losses at open hot-plate areas and provides maximum contact protection, and thus accident prevention.
In the covered areas, skin burns could occur when handling moulds or removing parts from moulds are prevented.
|Temperature resistance (short-term)||300 ℃||572 ℉|
|Temperature resistance (long-term)||280 ℃||536 ℉|
|Thermal conductivity||0.06 W/mK||0.03 btu/ft h ℉|
