If you wanted to destroy a hydraulic system as quickly as possible without touching it with a hammer, you would introduce dirt. Contamination is behind the large majority of hydraulic failures, and the particles that do the damage are far too small to see.
- 70-85% of hydraulic failures traced to contamination1
- ~40 microns smallest particle the eye can resolve2
- <10 microns typical servo valve clearance2
A Van Dorn Demag study put the share of hydraulic failures and component wear attributable to solid particulate contamination at between 70 and 85%. You will often see 80% quoted flatly; it is worth knowing that figure dates to the early 1980s and its exact provenance has been questioned. The direction is not in dispute even if the decimal place is.
The uncomfortable part is that a great deal of that contamination arrives during maintenance. New oil straight from the drum is routinely dirtier than the cleanliness class the system requires.
What the Particles Actually Do

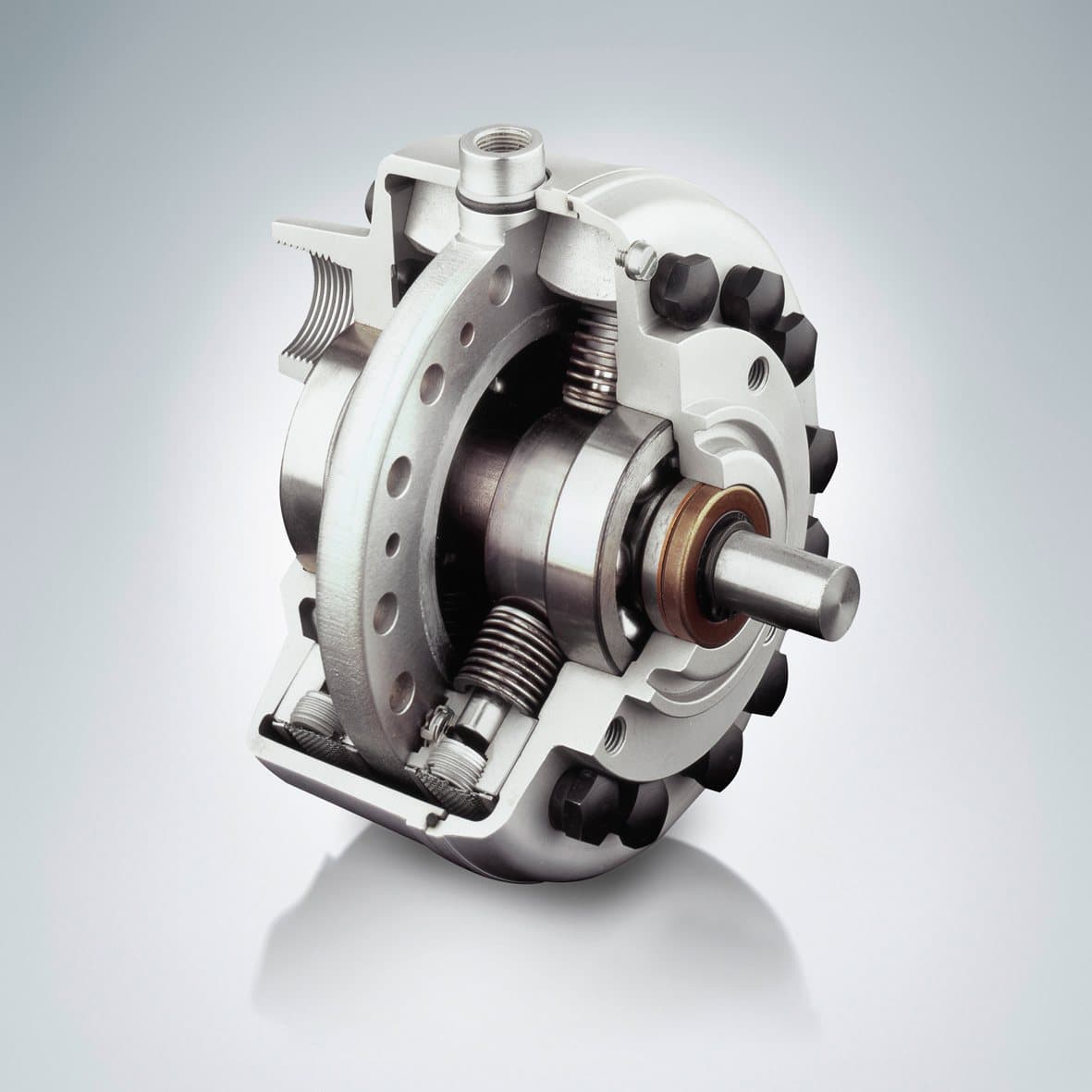

The clearances inside a servo valve or a piston pump are measured in single-digit microns. A particle of that size does not simply pass through: it erodes the land it passes over, and the debris it generates erodes the next component. Contamination is self-accelerating, which is why systems tend to fail slowly and then all at once.
The human eye stops resolving particles somewhere around 40 microns. Everything that matters is smaller than that. Clean-looking oil is not evidence of anything.
The Habits that Shorten a System's Life
- Topping up from an open drum with a funnel that lives on a shelf. Filter new oil in; do not assume it arrives clean.
- Leaving a reservoir open during a repair. Airborne dust in a plant is exactly the particle size the system cannot tolerate.
- Running filter elements to collapse. Once the bypass opens, unfiltered oil goes straight to the pumps and valves, which is precisely when the filter was most needed.
- Ignoring the breather. Every time the fluid level drops, the reservoir inhales plant air. A desiccant breather is a cheap component that prevents both dirt and water ingress.
- Choosing an element by physical fit. Filtration rating, beta ratio and collapse pressure decide protection; the housing only decides whether it fits.
Water Is the Other One
Water is a contaminant in its own right. It degrades the additive package, promotes corrosion, and dramatically reduces bearing life inside pumps and motors. It typically enters through the breather as humid air that condenses on cooling.
A cloudy or milky sample is water. By the time it looks like that, the damage has already begun, so it is worth sampling before appearance changes.
What Actually Works
Set a target cleanliness class for the system, filter new oil before it goes in, keep the reservoir sealed and breathing through a desiccant, and change elements on condition or schedule rather than on failure. None of that is expensive. All of it is cheaper than a pump.
