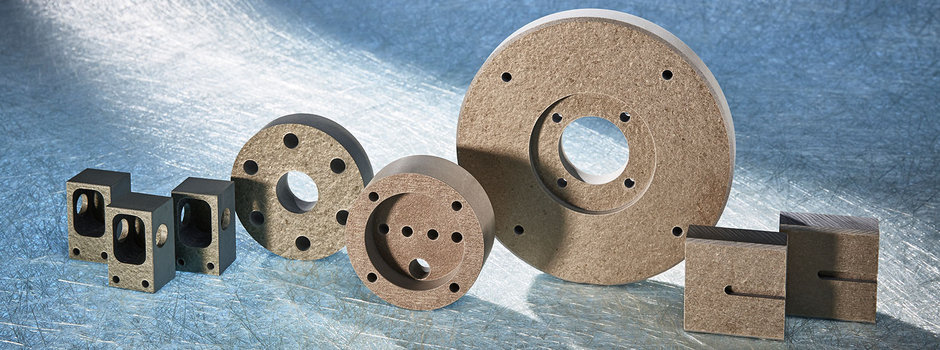

The GL-P material has been developed for applications with high continuous operating temperature. Primary components are high-quality mica fractions combined with silicon-resin impregnation.

The insulating materials, pressed to produce laminates, are non-flammable.

Special material characteristics:

Areas of application:

GL-P is mainly used as permanently fixed, all-over heat protection in high-temperature soldering systems, presses and blanking equipment. This material is ideal for induction and electric arc furnaces, as well as switch cabinet and apparatus engineering because it is electrically non-conductive.

Thanks to its excellent properties, this material is suitable for many insulation types; e.g. in glass processing, in welding systems, in pot soldering machines or for extrusion dies in plastics processing.

Thermal
Temperature resistance (short-term) 800 ℃ 1472 ℉
Temperature resistance (long-term) 500 ℃ 932 ℉
Thermal conductivity 0.31 W/mK 0.18 btu/ft h ℉
Coefficient of the linear expansion 10•10-6 10•10-6
Mechanical
Compressive strength (room temperature) 330 N/mm2 47862.5 psi
Flexual strength 120 N/mm2 17404.5 psi
Compressive strength (200 ℃) 240 N/mm2 34809.1 psi
