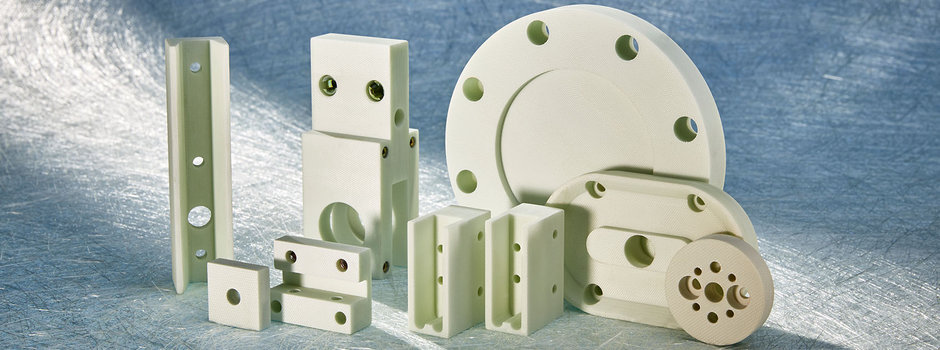

The Brandenburger BRA-GLA® SI insulation plate is resistant to high pressure and consists of a combination of glass fabric and thermoset resin.
Special material characteristics:
- Excellent Dimensional Stability
- Very High Long-Term Temperature Resistance
- Good Insulation Properties
- High Compressive Strength
- Coefficient of Expansion Similar to that of Steel
Areas of application:
This material is mainly used as heat shielding in combination with BRA-GLA® and S 4000®, for peak temperatures of more than 230° C to 300° C. It is also used in the plastics industry, in components used at constant temperatures around 250° C, when constant performance at all altitudes is required.
| Thermal | ||
|---|---|---|
| Temperature resistance (short-term) | 350 ℃ | 662 ℉ |
| Temperature resistance (long-term) | 280 ℃ | 536 ℉ |
| Thermal conductivity | 0.22 W/mK | 0.13 btu/ft h ℉ |
| Coefficient of the linear expansion | 8•10-6 | 8•10-6 |
| Mechanical | ||
| Compressive strength (room temperature) | 450 N/mm2 | 65267 psi |
| Flexual strength | 120 N/mm2 | 17404.5 psi |
| Compressive strength (200 ℃) | 200 N/mm2 | 29007.5 psi |
